1300350061

标准环形连接器 DIAG;DEVICENET; PWRMN;TEE;F-M

Conn Power M/F/M 15 POS Solder T Style Cable Mount 15 Terminal 3 Port

得捷:
CONN T-ADPT 5P-5/5P F-F/M INLINE

贸泽:
标准环形连接器 DIAG;DEVICENET; PWRMN;TEE;F-M

艾睿:

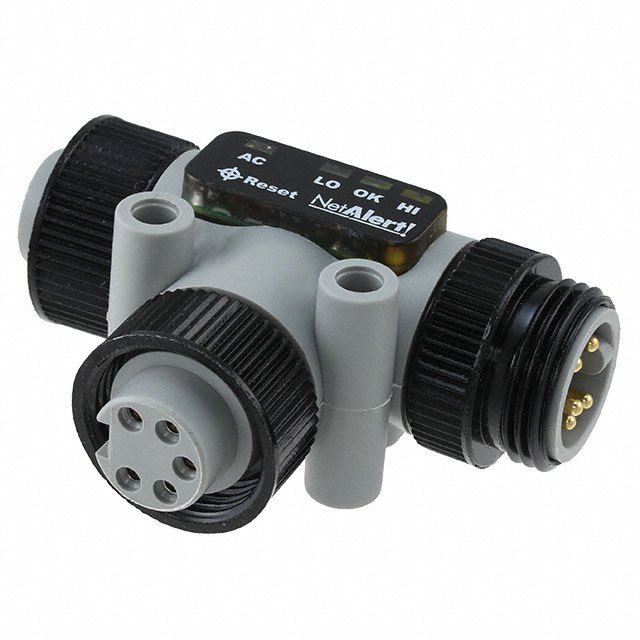

Easily connect a power supply to a circuit with this 1300350061 power connector from Molex. This M/F/M connector&s;s 15 contacts that are made out of copper alloy and plated with gold over nickel. It has a tee style body orientation. It has a maximum voltage rating of 30 VDC. This connector has 3 ports. 1300350061 is housed in thermoplastic elastomer. This device has a maximum current rating of 8 A/contact. Its 15 terminals use the solder termination method. This product is 71.9 mm long, 28.6 mm tall and 71.9 mm deep. This power connector has a minimum operating temperature of -20 °C and a maximum of 80 °C.

Verical:
Conn Power M/F/M 15 POS Solder T Style Cable Mount 15 Terminal 3 Port

MASTER:
Conn Power M/F/M 15 POS Solder T Style Cable Mount 15 Terminal 3 Port

Online Components:
Conn Power M/F/M 15 POS Solder T Style Cable Mount 15 Terminal 3 Port
