1-1740196-2

Conn D-Subminiature RCP 15POS 2.74mm Solder RA SMD 15 Terminal 1Port T/R

15P HD20 REC.HEAD .EUROSTYLE SMT UNC4-40

Product Highlights

Number of Positions = 15

Receptacle

PCB Mount Angle = Right Angle

Product Series = HD 20

With Mating Connector Lock

得捷:
CONN D-SUB RCPT 15P SMD R/A SLDR

艾睿:

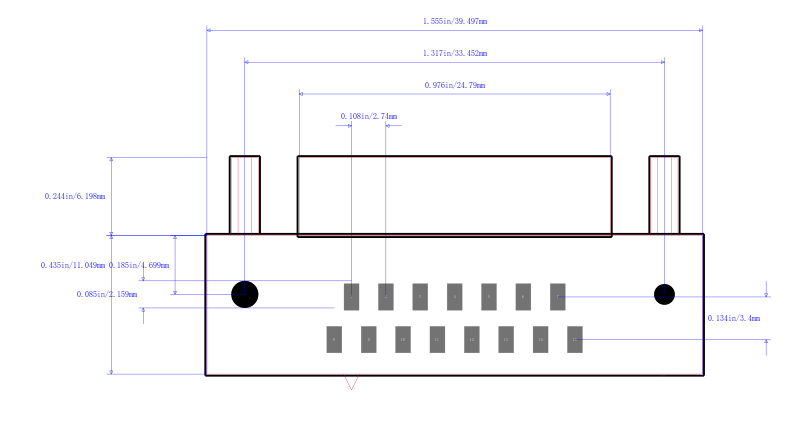

Using the 1-1740196-2 DVI connector from TE Connectivity is fast and easy for communicating between serial connections in your circuit. It has a right angle body orientation. This connector has a single port. Its pitch is 2.74 mm. This receptacle connector&s;s 15 contacts that are made out of copper-magnesium and plated with gold over nickel. 1-1740196-2 is housed in polychlorinated terphenyl. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its 15 terminals use the solder termination method. This product is 39.2 mm long, 12.5 mm tall and 17.26 mm deep.

安富利:
Conn D-Subminiature RCP 15 POS 2.74mm Solder RA SMD 15 Terminal 1 Port T/R

Chip1Stop:
Conn D-Subminiature RCP 15 POS 2.74mm Solder RA SMD 15 Terminal 1 Port T/R

Verical:
Conn D-Subminiature RCP 15 POS 2.74mm Solder RA SMD 15 Terminal 1 Port T/R

MASTER:
HDP20 REC. HEADER, SMT, 15 POS. HDP20 BUCHSENSTECKER, SMT, 15 POL. EUROSTYLE

Powell:
Standard Board Mount Connectors

Online Components:
15P HD20 REC.HEAD .EUROSTYLE SMT UNC4-40

Electro Sonic:
15P HD20 REC.HEAD .EUROSTYLE SMT UNC4-40
