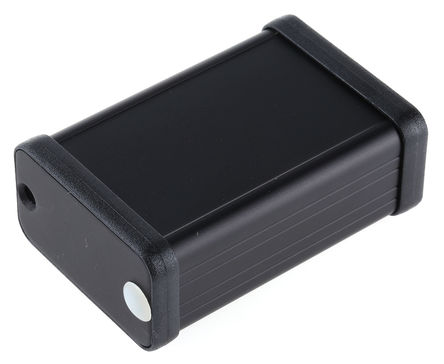

1455D601BK

Hammond 1455 压延铝箱Hammond 1455 系列外壳带有压延铝主体和两个易于加工、黑色实心 ABS 端板，带有一体式座圈。 这些外壳设计用于盛放 P.C. 板或用于设备接口。设计用于盛放 P.C. 板或用于设备接口 适合标准 Eurocards 尺寸 通过滑入压入箱体的内部槽，可实现水平印刷电路板安装 外壳包括两个带有一体式座圈的黑色实心塑料端板 坚固主体由压延铝制成，最小厚度为 1.5mm 压延主体包括滑动可拆卸腹板，较小规格（A、B、C 和 D）除外 较小规格（A 和 B）为圆形，更符合人机工程学手持式设计 DIN 导轨夹和法兰套件单独出售 ### 随附1 个压延铝主体、2 个 ABS 端板、6 个端板螺钉和自黏式橡胶支脚。### 通用铝钢箱盒

**Key Features:**

* Designed to house P.C. boards or for equipment interfacing.

* Sized for standard Eurocards.

* P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.

* Easy to machine - one piece - front & back plastic end panels.

* Rugged body constructed from extruded aluminum with a minimum thickness of .06" 1.5 mm.

* Extruded aluminum body includes a slide removable "belly" plate - except in smaller "A", "B", "C" & "D" sizes

**Includes:**

* Two easy to machine, black solid ABS plastic end panels with integral bezel link here if you prefer our metal end panel version

* Extruded aluminum body - choice of either clear, black or in some models blue and red anodized finish "A" & "B" sizes

* All hardware - end panel screws are #6 x 3/8" TTT - thread rolling, steel screws with a #4 flat head phillips drive -with black zinc plate finish.

* For replacement screws quantity 100 order part number 1455MS100BK

* Self adhesive clear rubber feet. Replacements are available - order part number 1421T2CL pack of 24.

* NOTE: Recommended screw torque is 5 lbf/in
