103311-6
数据手册.pdfAMP - TE CONNECTIVITY 103311-6 Wire-To-Board Connector, 2.54mm, 26Contacts, Header, AMP-LATCH Series, Through Hole, 2Rows
026 LOPRO HDR RA 30DP
Product Highlights
Connector Type = Pin Headers
Low Profile
Number of Positions = 26
2.54 x 2.54 mm Centerline, Matrix
PCB Mount Angle = Right Angle
得捷:
CONN HEADER R/A 26POS 2.54MM
艾睿:

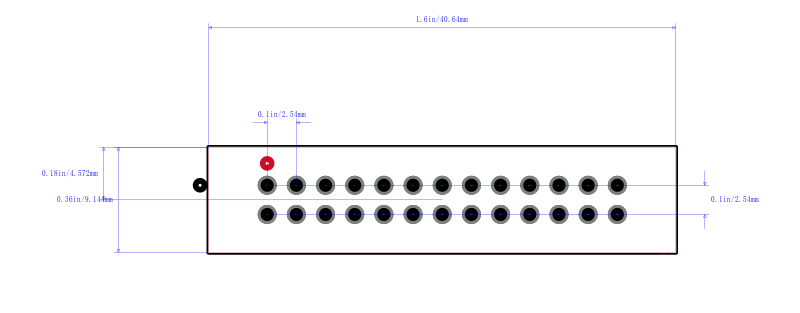

Mounting this shrouded 103311-6 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 26 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel|gold over nickel. This is a 2-row connector. It has a header type gender. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -65 to 105 °C. This product is 40.64 mm long, 9.14 mm tall and 12.12 mm deep. It uses the solder termination method. 103311-6 is housed in black thermoplastic.
Jameco:
Connector Shrouded Header 26 Position 2.54mm Solder Right Angle Thru-Hole
安富利:
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole
Chip1Stop:
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole
Verical:
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Automotive Tube
Newark:
# AMP - TE CONNECTIVITY 103311-6 Wire-To-Board Connector, 2.54 mm, 26 Contacts, Header, AMP-LATCH Series, Through Hole, 2 Rows
MASTER:
HEADER ASSY, LOW PROFILE, AMP-LATCH
Powell:
Pin and Pinless Headers AMP-LATCH
Online Components:
026 LOPRO HDR RA 30DP
Electro Sonic:
026 LOPRO HDR RA 30DP
