THS10082IDAG4

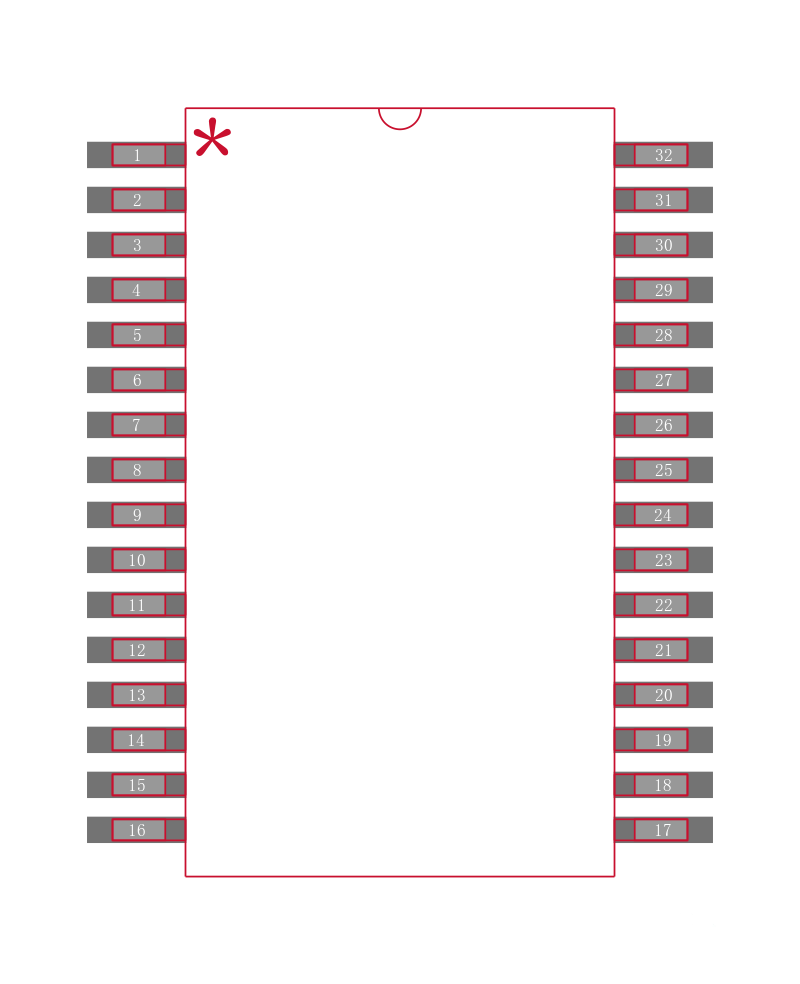

10Bit, 8MSPS ADC W/Dual Channel, Parallel DSP/uP Interface, 16X FIFO, Channel AutoScan, Low Power 32-TSSOP -40℃ to 85℃

DESCRIPON

The THS10082 is a CMOS, low-power, 10-bit, 8 MSPS analog-to-digital converter ADC. The speed, resolution, bandwidth, and single-supply operation are suited for applications in radar, imaging, high-speed acquisition, and communications. A multistage pipelined architecture with output error correction logic provides for no missing codes over the full operating temperature range. Internal control registers allow for programming the ADC into the desired mode. The THS10082 consists of two analog inputs, which are sampled simultaneously. These inputs can be selected individually and configured to single-ended or differential inputs. An integrated 16 word deep FIFO allows the storage of data in order to take the load off of the processor connected to the ADC. Internal reference voltages for the ADC 1.5 V and 3.5 V are provided.

FEATURES

• Simultaneous Sampling of Two Single-Ended Signals or One Differential Signal

• Integrated 16-Word FIFO

• Signal-to-Noise and Distortion Ratio: 59 dB at fI = 2 MHz

• Differential Nonlinearity Error: ±1 LSB

• Integral Nonlinearity Error: ±1 LSB

• Auto-Scan Mode for Two Inputs

• 3-V or 5-V Digital Interface Compatible

• Low Power: 216 mW Max

• 5-V Analog Single Supply Operation

• Internal Voltage References . . . 50 PPM/°C and ±5% Accuracy

• Parallel µC/DSP Interface

APPLICATIONS

• Radar Applications

• Communications

• Control Applications

• High-Speed DSP Front-End

• Automotive Applications
