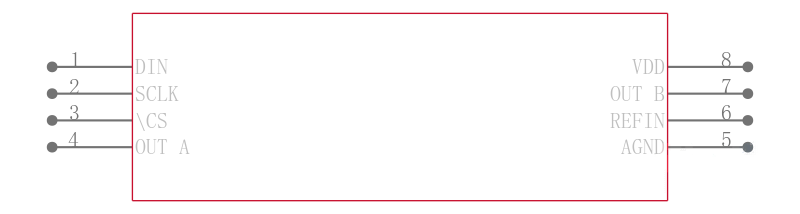

TLV5617AIDG4

10Bit, 2.5us Dual DAC, Serial Input, Pgrmable Settling Time 8-SOIC -40℃ to 85℃

description

The TLV5617A is a dual 10-bit voltage output DAC with a flexible 3-wire serial interface. The serial interface is compatible with TMS320, SPI, QSPI, and Microwire serial ports. It is programmed with a 16-bit serial string containing 4 control bits and 10 data bits.

The resistor string output voltage is buffered by a x2 gain rail-to-rail output buffer. The buffer features a Class-AB output stage to improve stability and reduce settling time. The programmable settling time of the DAC allows the designer to optimize speed versus power dissipation.

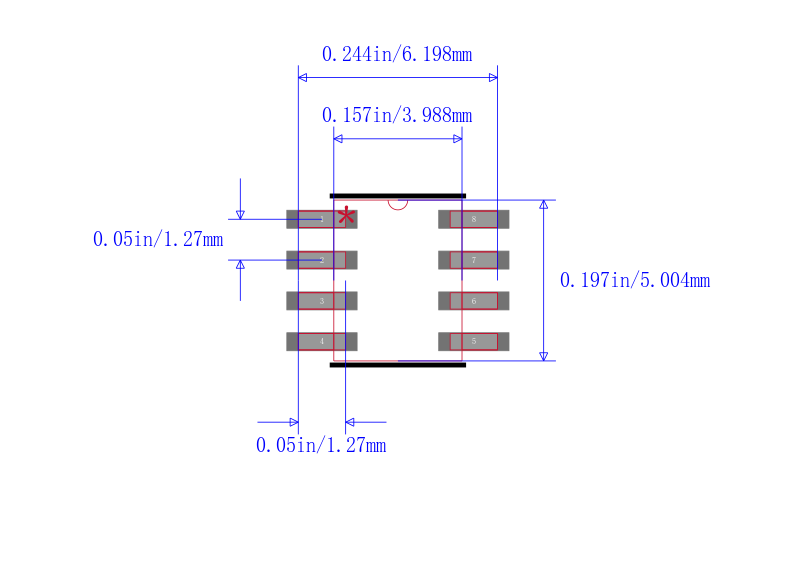

Implemented with a CMOS process, the device is designed for single supply operation from 2.7 V to 5.5 V. It is available in an 8-pin SOIC package in standard commercial and industrial temperature ranges.

features

• Dual 10-Bit Voltage Output DAC

• Programmable Settling Time

   – 3 µs in Fast Mode

   – 10 µs in Slow Mode

• Compatible With TMS320 and SPI Serial Ports

• Differential Nonlinearity <0.1 LSB Typ

• Monotonic Over Temperature

• Direct Replacement for TLC5617A

applications

• Digital Servo Control Loops

• Digital Offset and Gain Adjustment

• Industrial Process Control

• Machine and Motion Control Devices

• Mass Storage Devices
