TLV320AIC1110PBSG4

Audio Codec 1ADC / 1DAC 15Bit 32Pin TQFP Tray

DESCRIPON

The TLV320AIC1110 provides extended gain and attenuation flexibility for transmit, receive, and sidetone

paths. A differential earphone output is capable of driving speaker loads as low as 8 Ωfor use in speaker

phone applications. The single tone function on the TLV320AIC1110 generates a single tone output of up to 8 kHz. The resolution of the DTMF tone is also selectable to 7.8125 Hz, 15.625 Hz, or 31.25 Hz through the interface control. The analog switch provides more control capabilities for voice-band audio processor PCM codec.

FEATURES

2.7-V to 3.3-V Operation

Designed for Analog and Digital Wireless Handsets and Telecommunications Applications

Two Differential Microphone Inputs

Differential Earphone Outputs and One Single-Ended Earphone Output

Earphone and Microphone Mute

Programmable Transmit, Receive, and Sidetone Paths With Extended Gain and Attenuation Ranges

Programmable for 15-Bit Linear Data or 8-Bit

  Companded µ-law and A-law Mode

Supports PCM Clock Rates of 128 kHz and 2.048 MHz

Pulse Density Modulated PDM Buzzer Output

On-Chip I2C Bus, Which Provides Simple, Standard, Two-Wire Serial Interface With Digital ICs

Dual-Tone Multifrequency DTMF and Single-Tone Generator Capable of up to 8-kHz Tone With Three Selectable Resolutions of 7.8125 Hz, 15.625 Hz, and 31.25 Hz

2-Channel Auxiliary Multiplexer MUX Analog Switch

Capable of Driving 32 ΩDown to a 8-Ω Speaker

Programmable Power Down Modes

Pin Compatible to the TLV320AIC1103 and TLV320AIC1109 Devices for TQFP Only

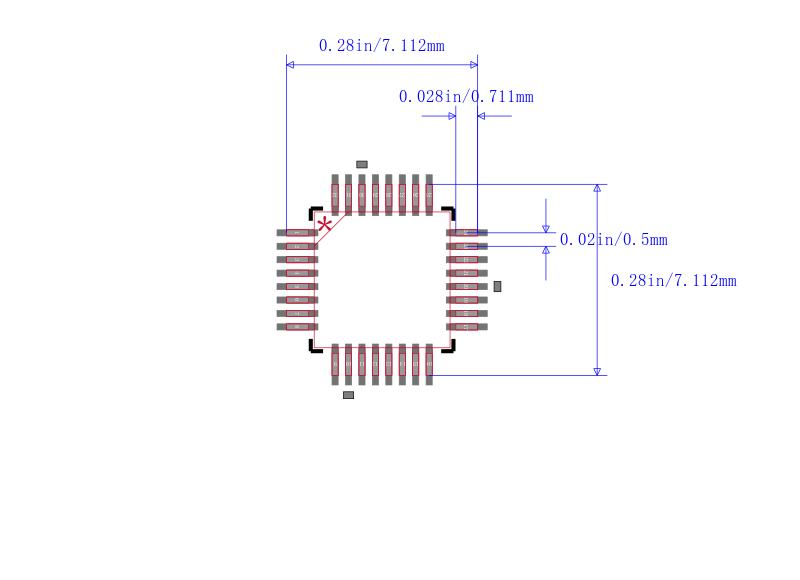

Available in a 32-Pin Thin Quad Flatpack TQFP Package and MicroStar Junior BGA

APPLICATIONS

Digital Handset

Digital Headset

Cordless Phones

Digital PABX

Digital Voice Recording
