PT6718C

PT6718C

TI(德州仪器) 主动器件

Module DC-DC 1Out 1.5V 13A 17Pin SIP SMD Module Tray

Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 1.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component comes in tray packaging, useful for fast picking and placing of your parts.


得捷:
DC DC CONVERTER 1.5V 12A


艾睿:
Provide the ability to switch between voltages by using this step down PT6718C DC to DC converter and switching regulator module. It has a voltage of 1.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component comes in tray packaging, useful for fast picking and placing of your parts.


Verical:
Module DC-DC 1-OUT 1.5V 13A 17-Pin SIP Module Tray


Win Source:
DC DC CONVERTER 1.5V 12A / Non-Isolated PoL Module DC DC Converter 1 Output 1.5V 13A 3.1V - 5.5V Input


PT6718C中文资料参数规格
技术参数

额定功率 20 W

输出接口数 1

输出电压 1.5 V

输出电流 13 A

拓扑结构 Buck

输入电压Max 5.5 V

输入电压Min 3.1 V

输出电流Max 13 A

额定功率Max 20 W

工作温度Max 85 ℃

工作温度Min -40 ℃

输入电压 3.1V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 17

封装 SMD-17

外形尺寸

长度 65.5 mm

宽度 25.9 mm

高度 16.76 mm

封装 SMD-17

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Obsolete

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

PT6718C引脚图与封装图

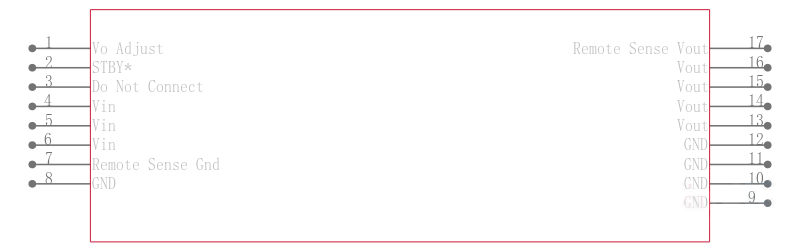

PT6718C引脚图

PT6718C引脚图

PT6718C封装图

PT6718C封装图

PT6718C封装焊盘图

PT6718C封装焊盘图

在线购买PT6718C
型号 制造商 描述 购买
PT6718C TI 德州仪器 Module DC-DC 1Out 1.5V 13A 17Pin SIP SMD Module Tray 搜索库存
替代型号PT6718C
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: PT6718C

品牌: TI 德州仪器

封装: 17-SMD 1.5V

当前型号

Module DC-DC 1Out 1.5V 13A 17Pin SIP SMD Module Tray

当前型号

型号: PT6717C

品牌: 德州仪器

封装: 17-SMD 1.8V

类似代替

隔离式DC/DC转换器 18VOut 13A 5/3.3V-In Adj ISR CU Case

PT6718C和PT6717C的区别

型号: PT6705C

品牌: 德州仪器

封装: 17-SMD

类似代替

REGULATOR 3.3V 13A VADJ HRZ SMD

PT6718C和PT6705C的区别

型号: PT6716C

品牌: 德州仪器

封装: 17-SMD

类似代替

REG 5V TO 2.5V 12A BIAS SMD

PT6718C和PT6716C的区别
