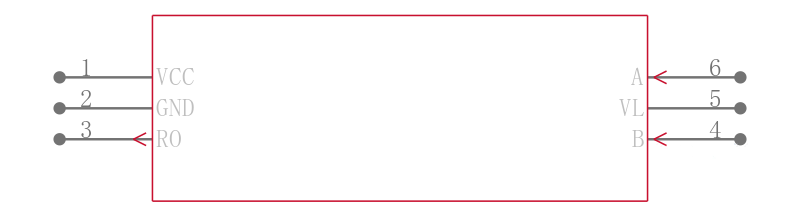

MAX3284EAUT-T

± 15kV ESD保护， 52Mbps的， 3V至5.5V ， SOT23封装的RS - 485 / RS - 422真失效保护接收器 【15kV ESD-Protected 52Mbps, 3V to 5.5V, SOT23 RS-485/RS-422 True Fail-Safe Receivers

General Description

The MAX3280E/MAX3281E/MAX3283E/MAX3284E are single receivers designed for RS-485 and RS-422 communication. These devices guarantee data rates up to 52Mbps, even with a 3V power supply. Excellent propagation delay 15ns max and package-to-package skew time 8ns max make these devices ideal for multidrop clock distribution applications.

Features

♦ESD Protection:

  ±15kV–Human Body Model

  ±6kV–IEC 1000-4-2, Contact Discharge

  ±12kV–IEC 1000-4-2, Air-Gap Discharge

♦Guaranteed 52Mbps Data Rate

♦Guaranteed 15ns Receiver Propagation Delay

♦Guaranteed 2ns Receiver Skew

♦Guaranteed 8ns Package-to-Package Skew Time

♦VLPin for Connection to FPGAs/ASICs

♦Allow Up to 128 Transceivers on the Bus 1/4-unit-load

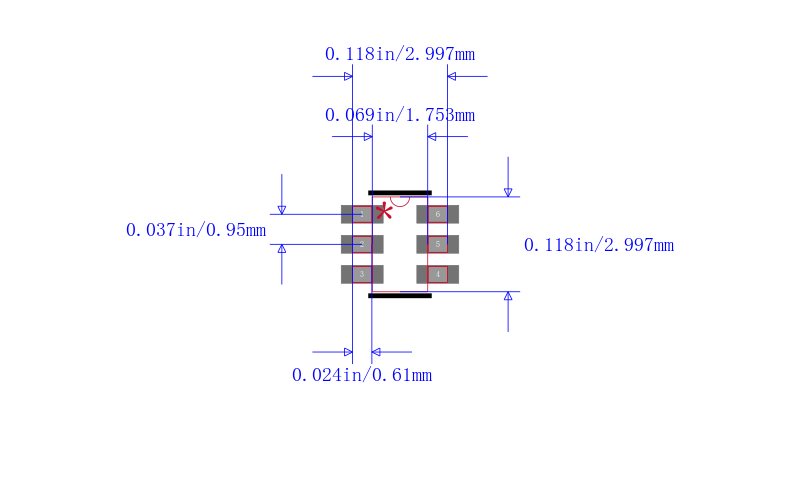

♦Tiny SOT23 Package

♦True Fail-Safe Receiver

♦-7V to +12V Common-Mode Range

♦3V to 5.5V Power-Supply Range

♦Enable High and Low Pins for Redundant Operation

♦Three-State Output Stage MAX3281E/MAX3283E

♦Thermal Protection Against Output Short Circuit

Applications

Clock Distribution

Telecom Racks

Base Stations

Industrial Control

Local Area Networks
