MAX6037AAUK12+T
数据手册.pdfMaxim Integrated(美信)
主动器件

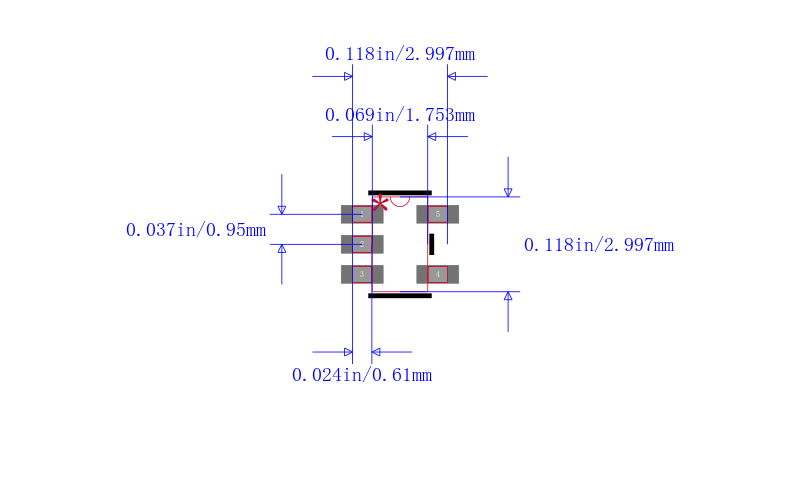

MAXIM INTEGRATED PRODUCTS MAX6037AAUK12+T 芯片, 电压基准, 串行, 1.25V, SOT23-5
The is a low dropout, micropower voltage reference with shutdown mode in 5 pin SOT-23 package. This is a low dropout, micropower voltage reference with fixed output voltage of 1.25V. The output is stable driving loads from 0.02µF to 1µF and can source and sink 5mA of load current. It offers a low temperature coefficient of ±6ppm/°C and initial accuracy of 0.2%. The low dropout voltage and independent supply voltage, low supply current makes this device ideal for battery powered applications.
- .
- Automotive temperature range from -40°C to 125°C
- .
- Maximum shutdown current is 500nA
- .
- Maximum quiescent current is 275µA
- .
- Supply voltage range from 2.5V to 5.5V
- .
- Noise voltage is 6µVP-P at 0.1Hz to 10Hz
