0022232191

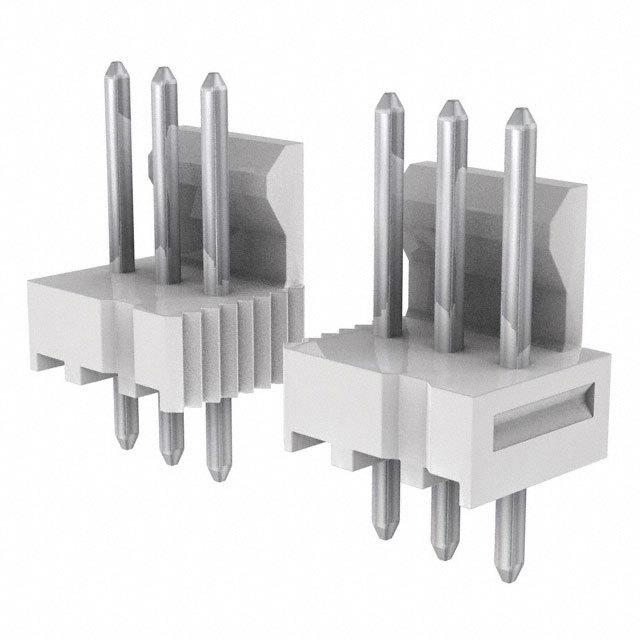

2.54毫米（ .100 ）间距KK®固体头，垂直，用摩擦锁， 19电路，锡（Sn ）镀层 2.54mm .100 Pitch KK® Solid Header, Vertical, with Friction Lock, 19 Circuits, Tin Sn Plating

Connector Header Through Hole 19 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 19POS 2.54MM

贸泽:
Molex KK 100 Hdr FrLk Vert 19 Ckt Tin

艾睿:
Think of Molex&s;s wire to board 0022232191 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 19 contacts that are made out of brass and plated with tin over copper. It has a maximum voltage rating of 250 V. It has a header type gender. It has a straight body orientation. This is a 1-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method. 0022232191 is housed in white nylon. This product is 48.26 mm long, 10.67 mm tall and 6.35 mm deep.

安富利:
Conn Wire to Board HDR 19 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn Wire to Board HDR 19 POS 2.54mm Solder ST Thru-Hole KK® Bag
