0437001.WR

LITTELFUSE  0437001.WR  保险丝, SMD, 1A, 1206, 快融式

437 系列快熔式熔丝

Littelfuse 437 系列快熔式熔丝特别设计用于对在高工作温度（高达 150ºC）下操作的电路提供过流保护。 特别适用于汽车电子、LCD 显示器、数据调制解调器、服务器、打印机和扫描仪应用。

工作温度范围 -55°C 至 +150°C

100% 无铅且符合 RoHS

适用于含铅和无铅回流焊/波焊

欧时:
### Littelfuse 437 系列快熔式熔丝Littelfuse 437 系列快熔式熔丝特别设计用于对在高工作温度（高达 150ºC）下操作的电路提供过流保护。 特别适用于汽车电子、LCD 显示器、数据调制解调器、服务器、打印机和扫描仪应用。工作温度范围 -55°C 至 +150°C 100% 无铅且符合 RoHS 适用于含铅和无铅回流焊/波焊 ### 表面安装技术_超微型熔丝架### 表面安装技术表面安装熔丝适用于低电压应用，可大大节省空间（和时间）。 FF 类型最适用于保护高值硅 IC，例如，报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等

立创商城:
1A 63V 快断

e络盟:
表面安装保险丝, 1 A, 437系列, 63 VAC, 63 VDC, 快速反应, 1206

艾睿:

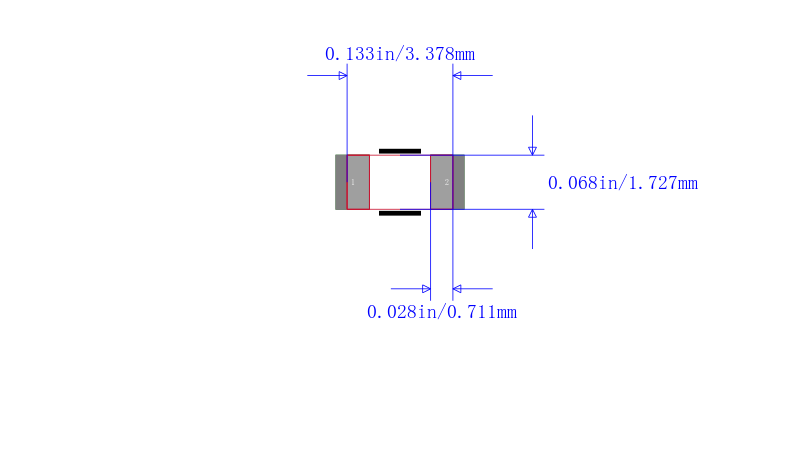

Be protected by adding a chip 0437001.WR fuse developed by Littelfuse. This device has a maximum power dissipation of 0.415Typ W. This device has a current rating of 1. Its maximum power dissipation is 0.415Typ W. This fuse has an operating temperature range of -55 °C to 150 °C. It has 2 terminals. The 0437001.WR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 3.12 mm long, 0.84 mm tall and 1.67 mm deep. The maximum AC voltage rating is 63 VAC and the maximum DC voltage rating is 63 VDC. Its fuse is made from ceramic.

Verical:
Fuse Chip Fast Acting 1A 63V SMD Solder Pad 1206 Ceramic T/R CSA/UL

Newark:
# LITTELFUSE  0437001.WR  Fuse, Surface Mount, 437 Series, 1 A, 63 VAC, 63 VDC, Fast Acting, 1206

儒卓力:
**1A 63V fast 1206 SMD HF **

Win Source:
FUSE BOARD MNT 1A 63VAC/VDC 1206
