0002062103

0002062103

数据手册.pdf
Molex(莫仕) 连接器与适配器

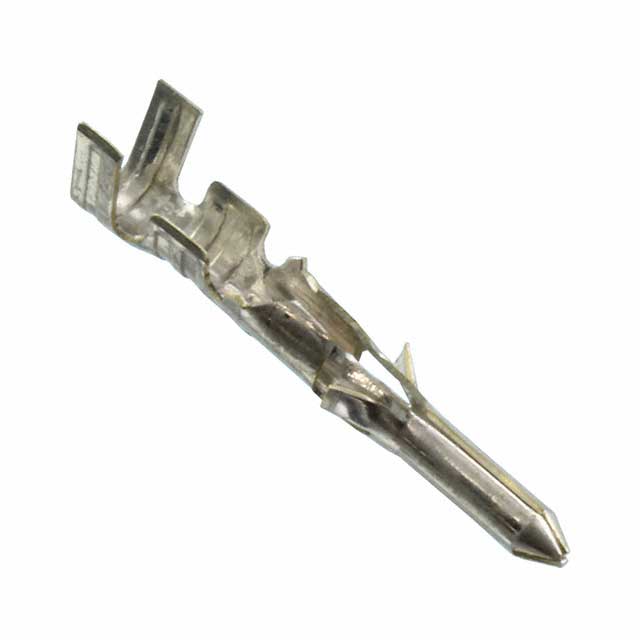

1.57毫米( .062 “ )直径,标准.062 ”引脚和插口压接端子, 1560系列,男,锡( Sn)的镀黄铜触点, 18-24 AWG ,袋 1.57mm .062" Diameter, Standard .062" Pin and Socket Crimp Terminal, Series 1560, Male, with Tin Sn Plated Brass Contact, 18-24 AWG, Bag

功率 引脚 触点 锡 18-24 AWG 压接


得捷:
CONN PIN 18-24AWG CRIMP TIN


艾睿:
Need a strong connection for your wires? This 0002062103 connector contact from Molex is the most traditional form of connections binding. It has a straight body orientation. This device has a maximum current rating of 5 A. This has a Connector Headers and PCB Receptacles connector. This connector contact has an operating temperature range of -40 °C to 105 °C. It uses the crimp termination method. This product is 16.82 mm long, 3.56 mm tall and 3.56 mm deep. Its wire is 18-24 AWG.


Chip1Stop:
Contact PIN Crimp ST Cable Mount Bag


Verical:
Contact PIN Crimp ST Cable Mount 18-24AWG Standard .062" Bag


0002062103中文资料参数规格
技术参数

触点数 1

极性 Male

线规 18AWG ~ 24AWG

额定电流Max 5 A

工作温度Max 105 ℃

工作温度Min -40 ℃

接触电阻Max 3.2 mΩ

外形尺寸

长度 16.82 mm

宽度 3.56 mm

高度 3.56 mm

物理参数

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

0002062103引脚图与封装图
暂无图片
在线购买0002062103
型号 制造商 描述 购买
0002062103 Molex 莫仕 1.57毫米( .062 “ )直径,标准.062 ”引脚和插口压接端子, 1560系列,男,锡( Sn)的镀黄铜触点, 18-24 AWG ,袋 1.57mm .062" Diameter, Standard .062" Pin and Socket Crimp Terminal, Series 1560, Male, with Tin Sn Plated Brass Contact, 18-24 AWG, Bag 搜索库存
替代型号0002062103
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: 0002062103

品牌: Molex 莫仕

封装:

当前型号

1.57毫米( .062 “ )直径,标准.062 ”引脚和插口压接端子, 1560系列,男,锡( Sn)的镀黄铜触点, 18-24 AWG ,袋 1.57mm .062" Diameter, Standard .062" Pin and Socket Crimp Terminal, Series 1560, Male, with Tin Sn Plated Brass Contact, 18-24 AWG, Bag

当前型号

型号: 0002062101

品牌: 莫仕

封装:

完全替代

1.57毫米( .062 “ )直径,标准.062 ”引脚和插口压接端子 1.57mm .062" Diameter, Standard .062" Pin and Socket Crimp Terminal

0002062103和0002062101的区别
