02013J1R9ABSTR

02013J1R9ABSTR

数据手册.pdf
AVX(艾维克斯) 被动器件

薄膜技术 Thin-Film Technology

If you need a capacitor with a high stability of capacitance when exposed to high heat or higher voltages then this metal film capacitor from is the optimal choice. It can withstand a voltage of 25 VDC. It has 2 terminals. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 1.9pF. This product is 0.6 mm long, 0.225 mm tall and 0.325 mm deep. This item should be stored between 15 °C and 35 °C. This metal film capacitor has an operating temperature range of -55 °C to 125 °C.

02013J1R9ABSTR中文资料参数规格
技术参数

额定电压DC 25 V

电容 1.9 pF

容差 ±0.05 pF

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 25 V

封装参数

安装方式 Surface Mount

引脚数 2

封装 0201

外形尺寸

长度 0.6 mm

宽度 0.3 mm

高度 0.225 mm

封装 0201

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±0.00 ppm/℃

其他

产品生命周期 Discontinued at Digi-Key

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

02013J1R9ABSTR引脚图与封装图

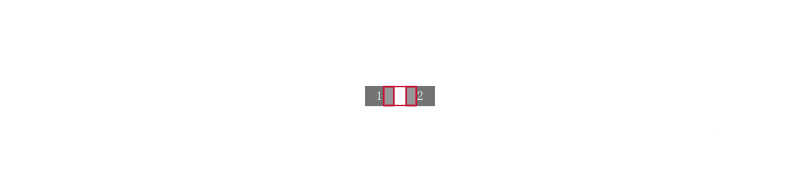

02013J1R9ABSTR引脚图

02013J1R9ABSTR引脚图

02013J1R9ABSTR封装图

02013J1R9ABSTR封装图

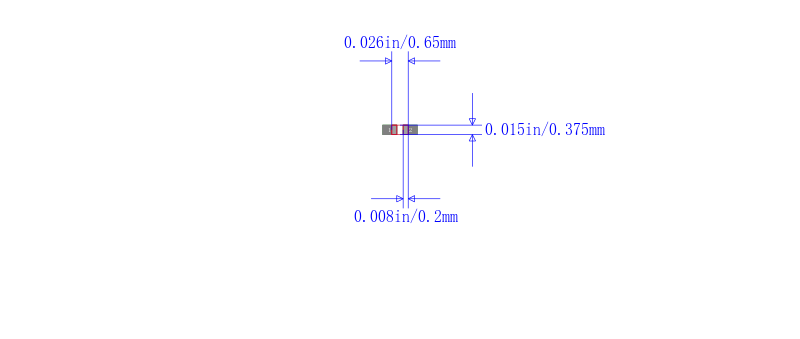

02013J1R9ABSTR封装焊盘图

02013J1R9ABSTR封装焊盘图
