0452.750MRL

LITTELFUSE  0452.750MRL  保险丝, 0.75A, 125VAC/VDC, 延时型, SMD

452 系列 NANO2 表面安装熔丝

Littelfuse 452 系列 NANO2 表面安装熔丝具有增强的浪涌耐受特性，有助于解决容纳浪涌电流引起的讨厌的“开路”问题，浪涌电流通常会导致快熔式熔丝开路。 452 系列 NANO2 表面安装熔丝适合广泛的应用。

延时器

小尺寸

低温降额

### 认可

CSA, UL

### 认可

UL; CSA

### 表面安装技术

表面安装熔丝适用于低电压应用，可大大节省空间（和时间）。 FF 类型最适用于保护高值硅 IC，例如，报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等

欧时:
Littelfuse 750mA电流 T熔度 不可复位表面固定熔断器 0452.750MRL, 6.1 x 2.69 x 2.69mm, 125V

立创商城:
750mA 125V 慢断

e络盟:
表面安装保险丝, 750 mA, NANO2 452 Series, 125 V, 125 V, 缓慢熔断, SMD

艾睿:

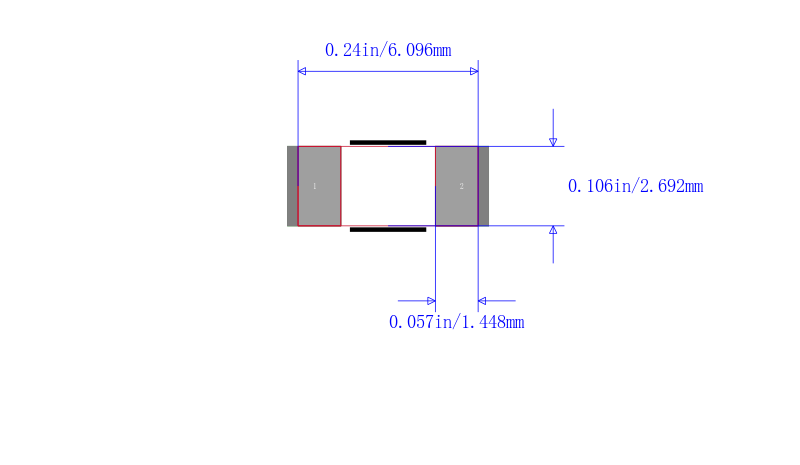

A great alternative to a circuit breaker, this a chip 0452.750MRL fuse from Littelfuse will protect your electronics. This device has a current rating of 0.75. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0452.750MRL fuse has a solder pad termination style. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 6.1 mm long, 2.69 mm tall and 2.69 mm deep. Its fuse is made from ceramic. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC.

Allied Electronics:
0.75A T Non-Resettable Surface Mount Fuse, 125 V

富昌:
452 系列 慢断 125 V 0.75 A 6.10 x 2.69 mm NANO2® 超小型 陶瓷 保险丝

Chip1Stop:
Fuse Chip Slow Blow Acting 0.75A 125V SMD Solder Pad 2410 Ceramic T/R

TME:
Fuse: fuse; time-lag; ceramic; 750mA; 125VAC; 125VDC; 6,1x2,7x2,7mm

Verical:
Fuse Chip Slow Blow Acting 0.75A 125V SMD Solder Pad 6.1 X 2.69mm Ceramic T/R CSA/UL

Newark:
# LITTELFUSE  0452.750MRL  Fuse, Surface Mount, NANO 452 Series, 750 mA, 125 VAC, 32 VDC, Time Delay, SMD

儒卓力:
**750mA 125V SLOW SMD gold plated **

Win Source:
FUSE BOARD MNT 750MA 125VAC/VDC
