Y1624350R000T9R

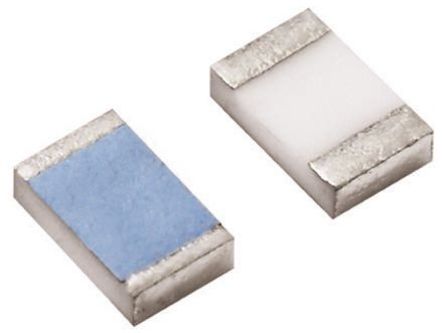

数据手册.pdfVSMP 系列超高速精密 Z 箔环绕 SMD 片式电阻器VSMP 系列超高精密 Z 箔表面安装片式电阻器在不同的环境条件下提供经证实的可靠性和极好的稳定性。 VSMP 的完全环绕终端确保制造过程中的安全操作，并提供多个热循环期间的稳定性。 VSMP 电阻器应用包括：自动测试设备 ATE；高精密仪器仪表；实验室；工业和医疗；音频；EB 应用；军用和空间；气载；拧紧孔仪器仪表；通信70°C 时功率 | 0.2W ---|--- 电阻容差 | 10 至 100 至 250 至 125K：0.01% 温度系数 | 0.2 ppm/°C 工作温度 | -55 → 125 °C 最大工作电压 | 40 V 尺寸（长x宽x厚） | 2.03 x 1.27 x 0.64 mm
Vishay Foil precision trimmers have the Bulk Metal® Foil resistive element which possesses a unique inherent temperature and load life stability. Plus, their advanced virtually back lash-free adjustment mechanism makes them easy to set quickly and accurately and keeps the setting exactly on target.- .
- *
Features
* **Temperature Coefficient of Resistance TCR: ±10 ppm/°C. –55 °C to +150°C ref. at +25°C; Through the Wiper 3; ±25 ppm/°C**
* **A Smooth and Unidirectional Resistance with Leadscrew Adjustment**
* **Load Life Stability: 0.1% Typical ?R, 1.0% Maximum ?R Under Full Rated Power at +85°C for 10 000 Hours**
* **Settability: 0.05% Typical; 0.1% Maximum**
* **Setting Stability: 0.1% Typical; 0.5% Maximum, DSS**
* **Power Rating: 0.25 W at + 85°C**
* **Resistance Range: 5 Ω to 10 kΩ**
* **Tolerance: ±5 %, ±10%**
* **Electrostatic Discharge ESD Up to 25 000 V**
* **Terminal Finish: Gold Plated
