XC2S400E-6FT256I

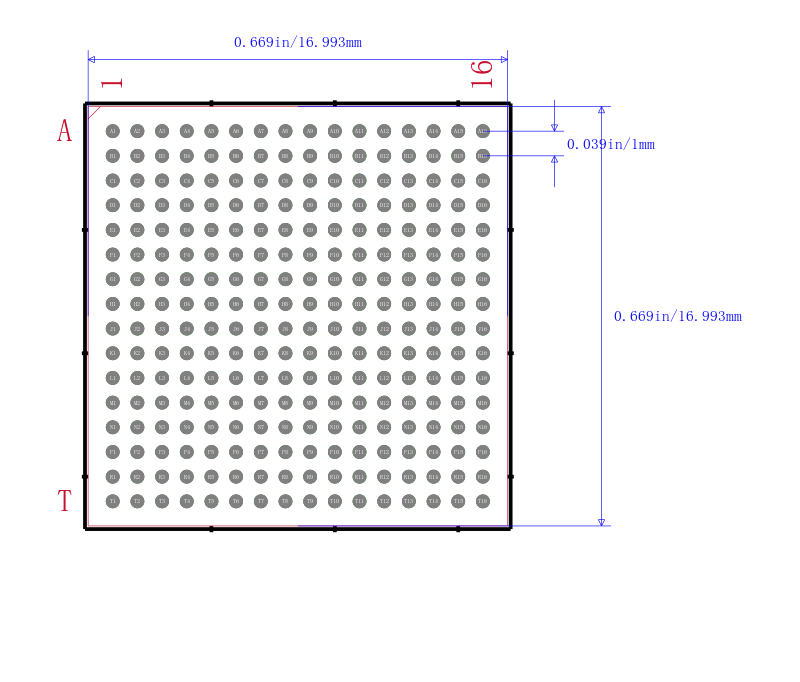

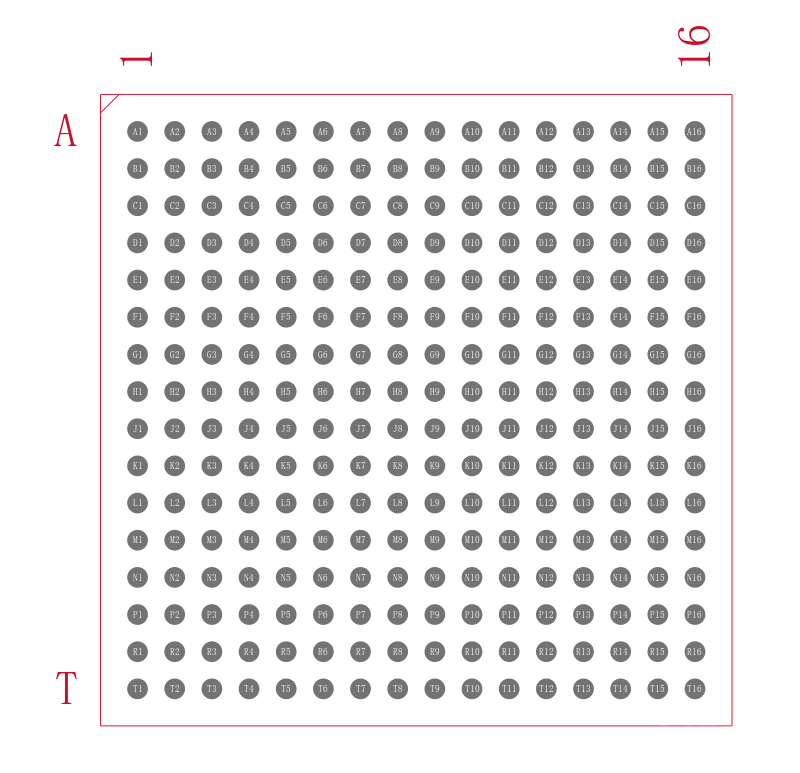

FPGA Spartan-IIE Family 400K Gates 10800 Cells 357MHz 0.15um Technology 1.8V 256Pin FTBGA

* Second generation ASIC replacement technology * Densities as high as 15,552 logic cells with up to 600,000 system gates * Streamlined features based on Virtex®-E FPGA architecture * Unlimited in-system reprogrammability * Very low cost * Cost-effective 0.15 micron technology * System level features * SelectRAM™ hierarchical memory: · 16 bits/LUT distributed RAM · Configurable 4K-bit true dual-port block RAM · Fast interfaces to external RAM * Fully 3.3V PCI compliant to 64 bits at 66 MHz and CardBus compliant * Low-power segmented routing architecture * Dedicated carry logic for high-speed arithmetic * Efficient multiplier support * Cascade chain for wide-input functions * Abundant registers/latches with enable, set, reset * Four dedicated DLLs for advanced clock control · Eliminate clock distribution delay · Multiply, divide, or phase shift * Four primary low-skew global clock distribution nets * IEEE 1149.1 compatible boundary scan logic * Versatile I/O and packaging * Pb-free package options * Low-cost packages available in all densities * Family footprint compatibility in common packages * 19 high-performance interface standards · LVTTL, LVCMOS, HSTL, SSTL, AGP, CTT, GTL · LVDS and LVPECL differential I/O * Up to 205 differential I/O pairs that can be input, output, or bidirectional * Hot swap I/O CompactPCI friendly * Core logic powered at 1.8V and I/Os powered at 1.5V, 2.5V, or 3.3V * Fully supported by powerful ® ISE® development system * Fully automatic mapping, placement, and routing * Integrated with design entry and verification tools * Extensive IP library including DSP functions and soft processors
