XC6216D332PR

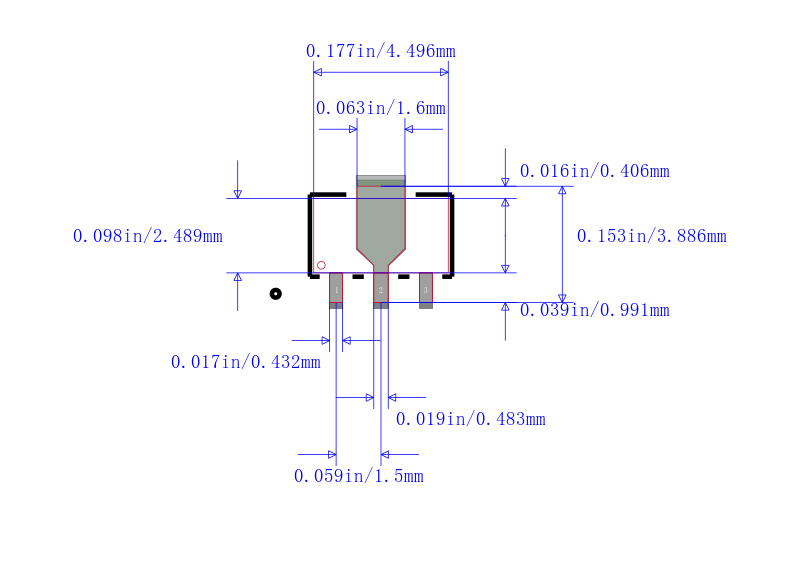

TOREX  XC6216D332PR  固定电压稳压器, LDO, 2V至28V, 300mV压差, 3.3V输出, 150mA输出, SOT-89-3

The is a Positive Voltage Regulator IC with 28V of operation voltage. The XC6216 series consists of a voltage reference, an error amplifier, a current limiter, a thermal shutdown circuit and a phase compensation circuit plus a driver transistor. The output voltage is selectable in 0.1V increments within the range of 2.0 to 12V using laser trimming technologies. With external resistors, the output voltage range can be expanded from 2.0 to 23V. The output stabilization capacitor CL is also compatible with low ESR ceramic capacitors. The over-current protection circuit and the thermal shutdown circuit are built-in. These two protection circuits will operate when the output current reaches current limit level or the junction temperature reaches temperature limit level. The CE function enables the output to be turned off and the IC becomes a stand-by mode resulting in greatly reduced power consumption.

.

5µA Low power consumption

.

<0.1µA Standby current

.

30dBat 1kHz High ripple rejection

.

Ceramic capacitor compatible

.

Current limit circuit, thermal shutdown circuit provides built-in protection
