VLF10045T-3R3N6R9

VLF10045T-3R3N6R9

数据手册.pdf
TDK(东电化) 被动器件

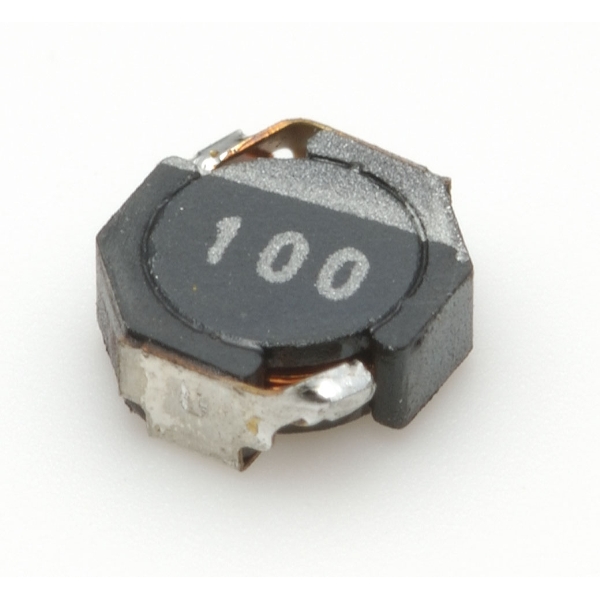

TDK  VLF10045T-3R3N6R9  表面贴装功率电感器, VLF系列, 3.3 µH, ± 30%, 屏蔽, 0.0116 ohm, 6.9 A

固定器


得捷:
FIXED IND 3.3UH 6.9A 11.6MOHM SM


贸泽:
Fixed Inductors 3.3uH 30%


e络盟:
TDK  VLF10045T-3R3N6R9  表面贴装功率电感器, VLF系列, 3.3 µH, ± 30%, 屏蔽, 0.0116 ohm, 6.9 A


艾睿:
Use this power VLF10045T-3R3N6R9 surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 100K Hz. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 6.9Typ A with a maximum resistance of 11.6m Ohm. It has an inductance of 3.3u H. This product is 10.4 mm long, 4.5 mm tall and 10.1 mm deep.


安富利:
Ind Power Shielded Wirewound 3.3uH 30% 100KHz 6.9A T/R


富昌:
VLF Series 3.3 uH ±30 % 6.9 A 11.6 mOhm SMT Shielded Wirewound Inductor


Chip1Stop:
Ind Power Shielded Wirewound 3.3uH 30% 100KHz 6.9A T/R


Verical:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz Ferrite 6.9A 0.0116Ohm DCR T/R


Electro Sonic:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz Ferrite 6.9A 11.6mOhm DCR T/R


VLF10045T-3R3N6R9中文资料参数规格
技术参数

额定电流 6.9 A

容差 ±30 %

电感 3.3 µH

产品系列 VLF-M-CA

电阻 9.70 mΩ

电感公差 ±30 %

测试频率 100 kHz

电阻DC) ≤11.6 mΩ

工作温度Max 105 ℃

工作温度Min 40 ℃

电阻DC Max 0.0116 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装 Nonstandard

外形尺寸

长度 10 mm

宽度 9.7 mm

高度 4.5 mm

封装 Nonstandard

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Not Recommended for New Designs

包装方式 Tape & Reel TR

最小包装 500

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

VLF10045T-3R3N6R9引脚图与封装图

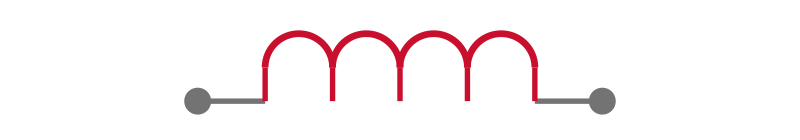

VLF10045T-3R3N6R9引脚图

VLF10045T-3R3N6R9引脚图

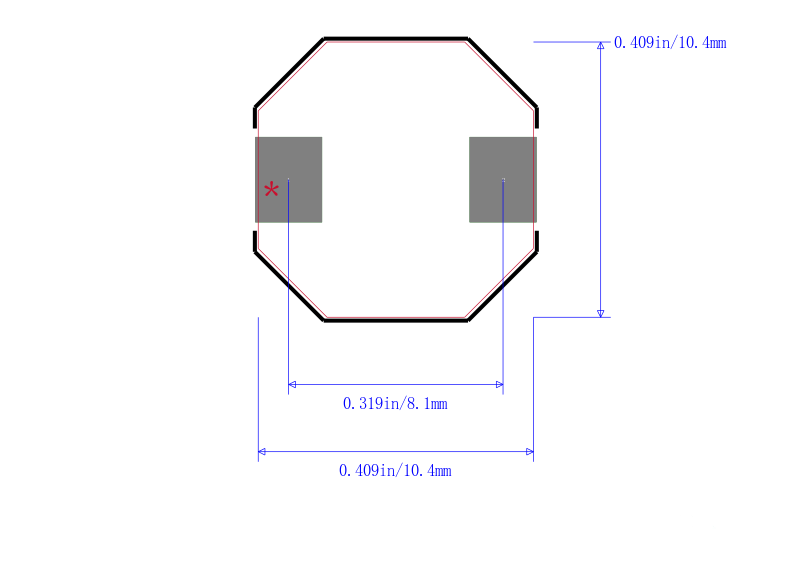

VLF10045T-3R3N6R9封装图

VLF10045T-3R3N6R9封装图

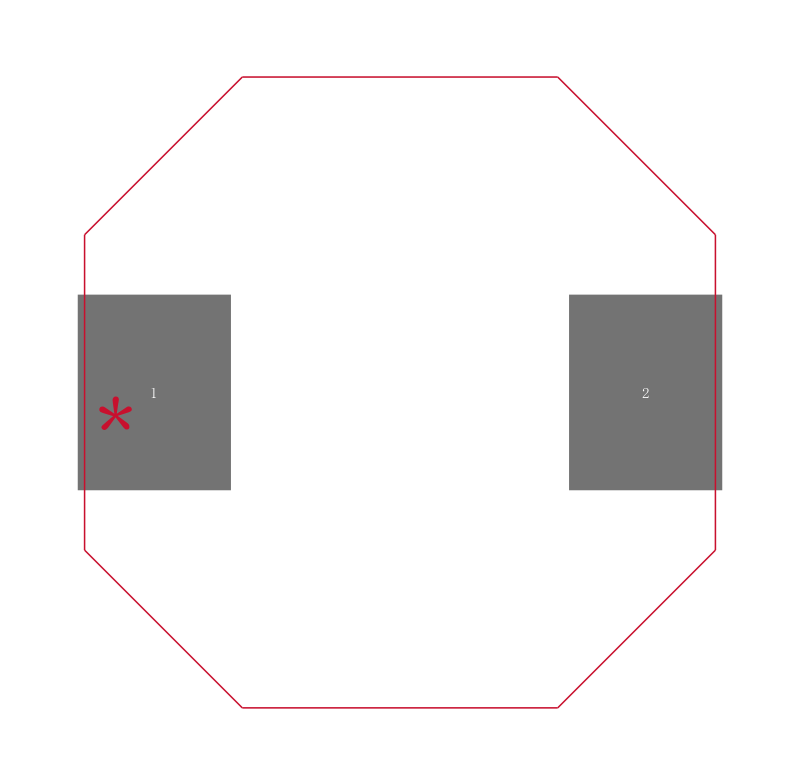

VLF10045T-3R3N6R9封装焊盘图

VLF10045T-3R3N6R9封装焊盘图

在线购买VLF10045T-3R3N6R9
型号 制造商 描述 购买
VLF10045T-3R3N6R9 TDK 东电化 TDK  VLF10045T-3R3N6R9  表面贴装功率电感器, VLF系列, 3.3 µH, ± 30%, 屏蔽, 0.0116 ohm, 6.9 A 搜索库存
替代型号VLF10045T-3R3N6R9
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: VLF10045T-3R3N6R9

品牌: TDK 东电化

封装: Nonstandard 3.3µH

当前型号

TDK  VLF10045T-3R3N6R9  表面贴装功率电感器, VLF系列, 3.3 µH, ± 30%, 屏蔽, 0.0116 ohm, 6.9 A

当前型号

型号: CLF10040T-3R3N

品牌: 东电化

封装: 3.3uH 4.8A

功能相似

TDK  CLF10040T-3R3N  表面贴装功率电感器, CLF系列, 3.3 µH, ± 30%, 绕线, 0.011 ohm, 4.8 A

VLF10045T-3R3N6R9和CLF10040T-3R3N的区别
