UPJ1H681MHD

680uF ±20% 50V 1850mA100kHz1850mA Φ12.5mm

680µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

立创商城:
680uF ±20% 50V

得捷:
CAP ALUM 680UF 20% 50V RADIAL

艾睿:

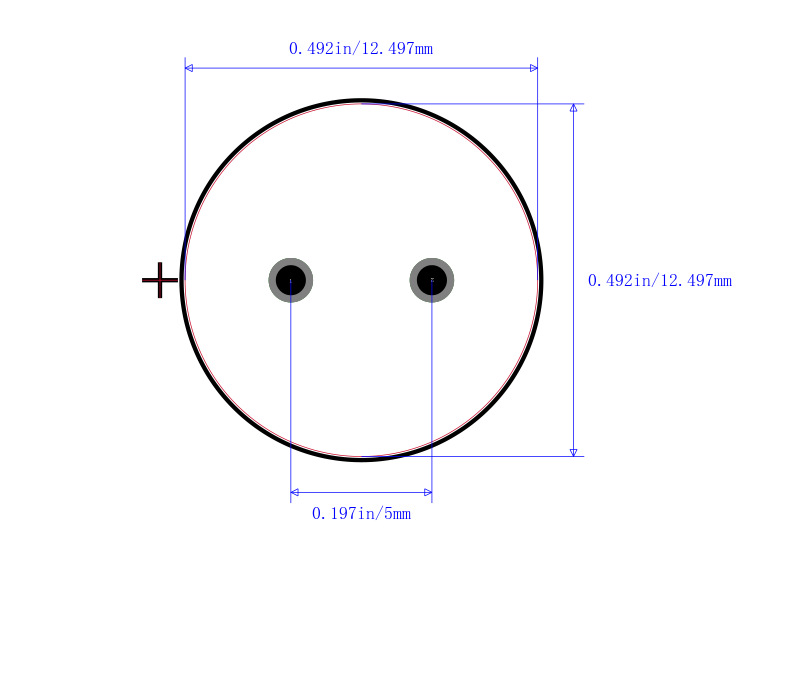

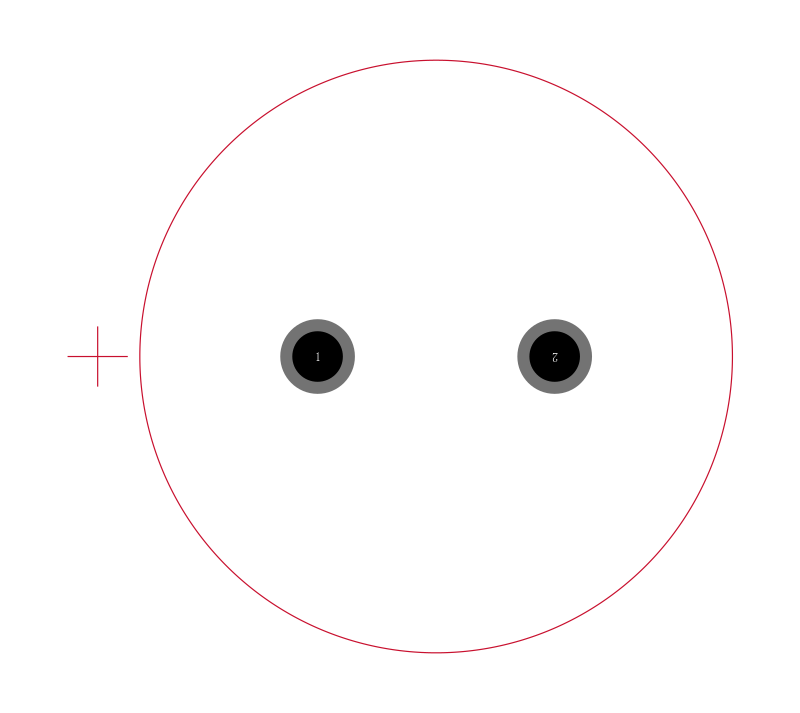

If you need to filter lower signal frequencies, then this electrolytic UPJ1H681MHD aluminum capacitor, developed by Nichicon, is the tool you need. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UPJ1H681MHD aluminum electrolytic capacitor has a radial termination style. This product is 35.5 mm tall with a diameter of 12.5 mm. Its capacitance value is 680uF. It has a tolerance of 20%. Its leakage current is 1020@1Min μA. This part has a lead diameter of 0.8 mm and a pitch of 5 mm.

Chip1Stop:
Cap Aluminum Lytic 680uF 50V 20% 12.5 X 35.5mm Radial 5mm 1530mA 5000h 105℃ Bulk

Newark:
# NICHICON  UPJ1H681MHD  Electrolytic Capacitor, Low Impedance, 680 µF, 50 V, UPJ Series, ± 20%, Radial Leaded, 12.5 mm
