UEP1V220MED

22uF ±20% 35V Φ6.3mm 11mm

22 µF 35 V 铝电解器 径向，Can - 105°C 时为 1000 小时

得捷:
CAP ALUM 22UF 20% 35V RADIAL

立创商城:
22uF ±20% 35V

艾睿:

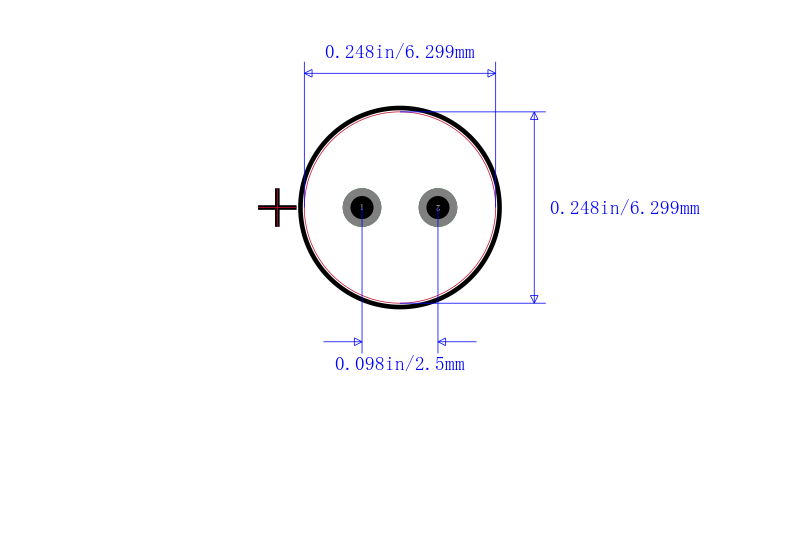

By implementing this electrolytic UEP1V220MED aluminum capacitor from Nichicon in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its capacitance value is 22uF. This product is 11 mm tall with a diameter of 6.3 mm. Its leakage current is 3@5Min μA. It has a tolerance of 20%. The UEP1V220MED aluminum electrolytic capacitor has a radial termination style.

安富利:
Cap Aluminum 22uF 35V 20% 6.3 X 11mm Radial 2.5mm 51mA 1000 hr 105°C Bulk

TME:
Capacitor: electrolytic; bipolar; THT; 22uF; 35VDC; Ø5x11mm; ±20%
