UPM2A181MHD

180uF ±20% 100V 1270mA100kHz1270mA Φ12.5mm

180µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

立创商城:
180uF ±20% 100V

得捷:
CAP ALUM 180UF 20% 100V RADIAL

艾睿:

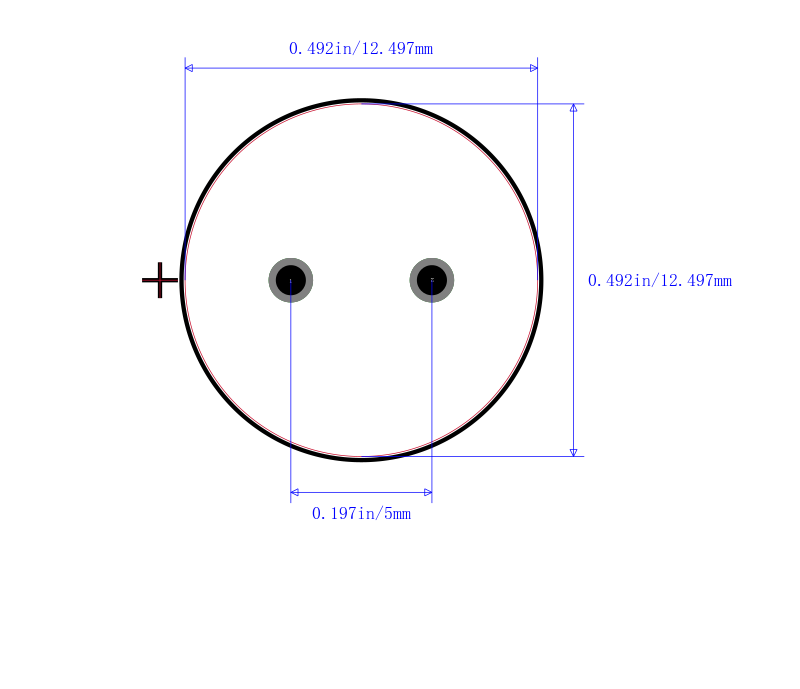

Choose this electrolytic UPM2A181MHD aluminum capacitor from Nichicon for its relatively high ESR. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 540@1Min μA. This part has a lead diameter of 0.8 mm and a pitch of 5 mm. It has a tolerance of 20%. Its capacitance value is 180uF. The UPM2A181MHD aluminum electrolytic capacitor has a radial termination style. This product is 31.5 mm tall with a diameter of 12.5 mm.

安富利:
Cap Aluminum 180uF 100V 20% 12.5 X 31.5mm Radial 5mm 641mA 5000 hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 180uF; 100VDC; ±20%
