UVR2G100MHD1TO

Cap Aluminum 10uF 400V 20% 6.3 X 11mm Radial Aluminum Cylindrical Can 2.5mm 33mA 2000 hr 85℃ Ammo Pack

10 µF 400 V 铝电解器 径向，Can - 85°C 时为 2000 小时

得捷:
CAP ALUM 10UF 20% 400V RADIAL

立创商城:
10uF ±20% 400V

艾睿:

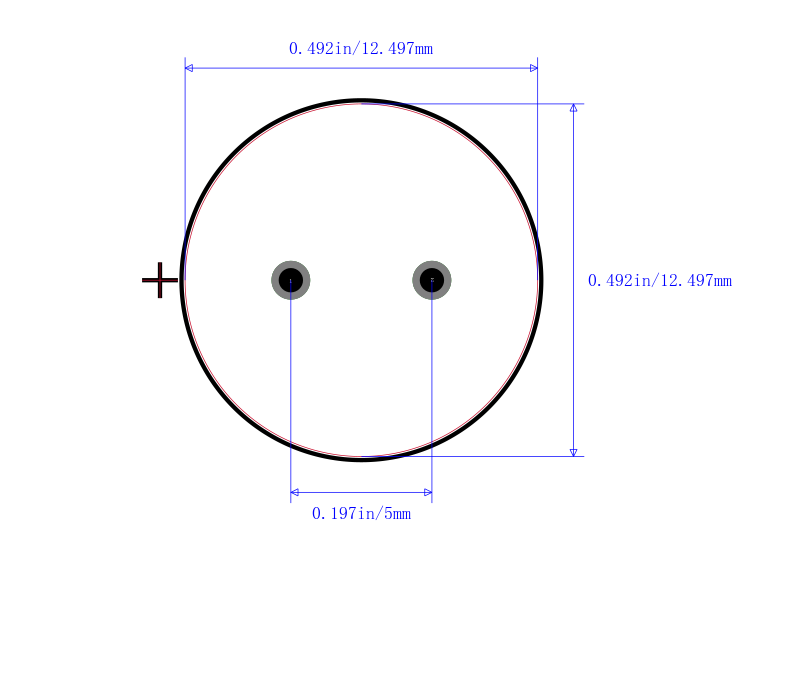

Lower the cost of your electronic circuit design by implementing this electrolytic UVR2G100MHD1TO aluminum capacitor from Nichicon. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its leakage current is 75.2@1Min μA. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 12.5 mm. The UVR2G100MHD1TO aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 10uF.

Newark:
# NICHICON  UVR2G100MHD1TO  Electrolytic Capacitor, Miniature, 10 µF, 400 V, VR Series, ± 20%, Radial Leaded, 12.5 mm
