TPS2024PE4

配电开关 POWER-DISTRIBUTION SWITCHES

DESCRIPON

The TPS202x family of power distribution switches is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices are 50-mΩ N-channel MOSFET high-side power switches. The switch is controlled by a logic enable compatible with 5-V logic and 3-V logic. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.

FEATURES

• 33-mΩ 5-V Input High-Side MOSFET Switch

• Short-Circuit and Thermal Protection

• Overcurrent Logic Output

• Operating Range . . . 2.7 V to 5.5 V

• Logic-Level Enable Input

• Typical Rise Time . . . 6.1 ms

• Undervoltage Lockout

• Maximum Standby Supply Current . . . 10 μA

• No Drain-Source Back-Gate Diode

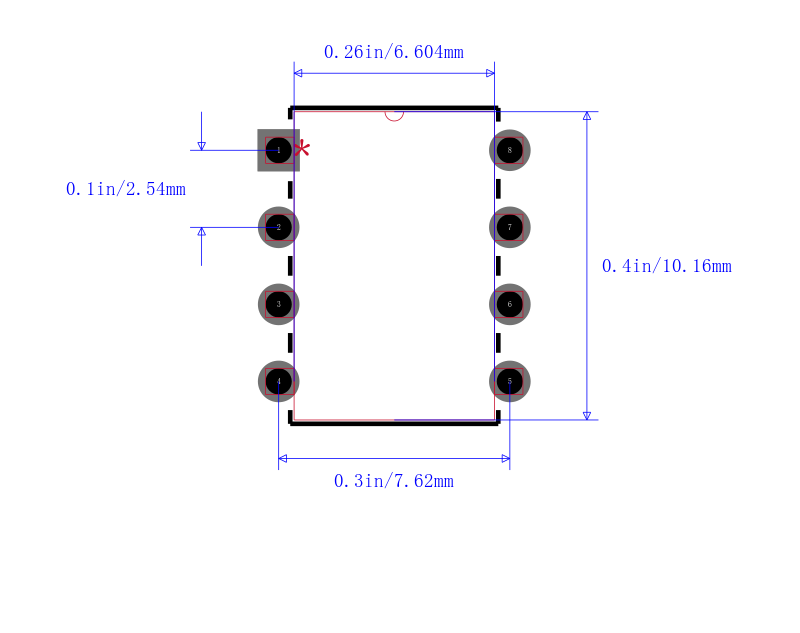

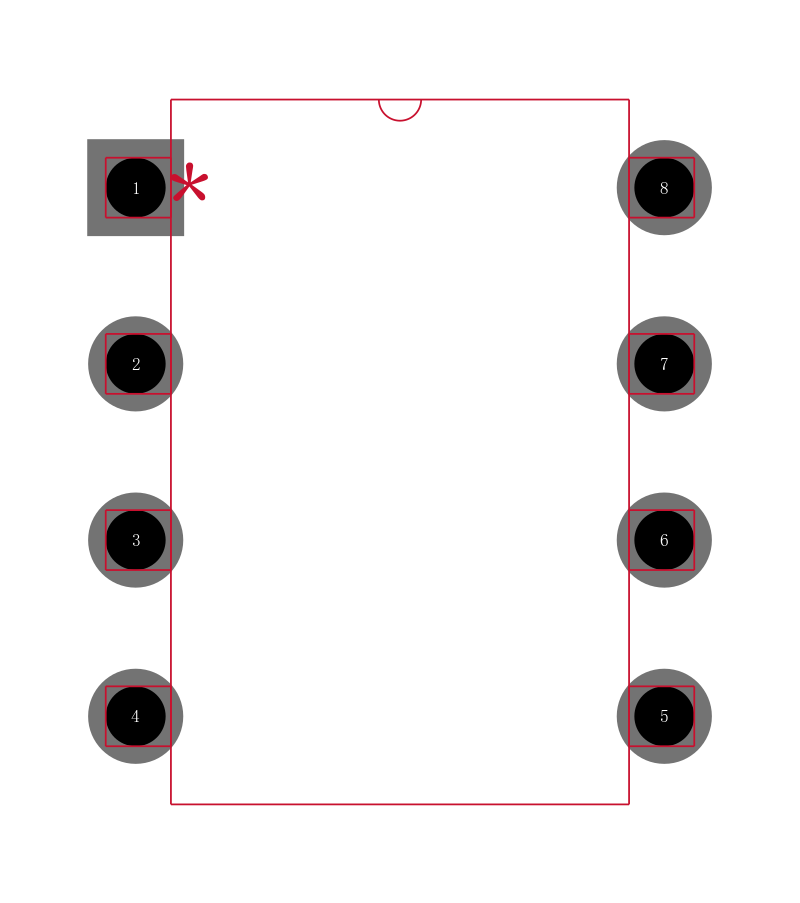

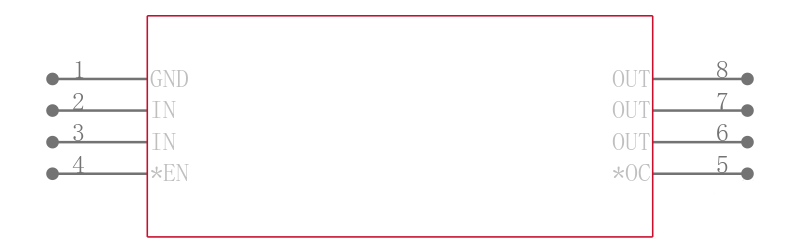

• Available in 8-Pin SOIC and PDIP Packages

• Ambient Temperature Range, –40°C to 85°C

• 2-kV Human-Body-Model, 200-V Machine-Model ESD Protection

• UL Listed - File No. E169910
