TA7267BP

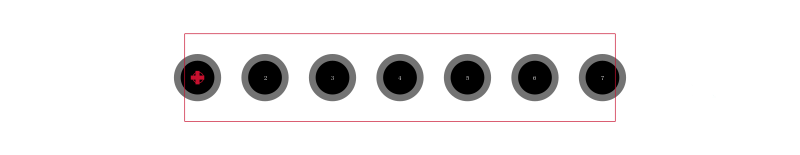

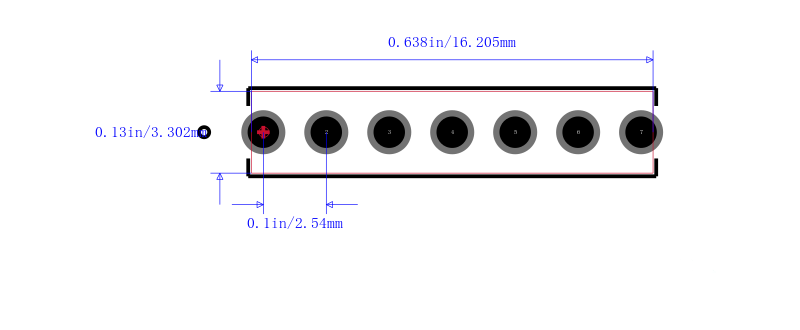

Full Bridge Motor Driver 7Pin7+Tab HSIP

Full-Bridge Driver H-Swithch for DC Motor

Driver for Switching between Forward and Reverse Rotation

The is a Bridge Driver for brushed DC Motor Rotation control. Forward Rotation, Reverse Rotation, Stop and Braking operations are available. It’s designed for Loading and Reel Motor driver for VCR and Tape Deck, and any other consumer and industrial applications. TA7267BP have Operation Supply Voltage terminal and Motor Driving Supply Voltage terminal independently, therefore Servo control operation is applicable.

Features

Output current up to 1.0 A AVE., and 3.0 A PEAK

Four different modes forward rotation, reverse rotation, stop, and brake are supported.

Built-in overcurrent protection and thermal shutdown circuit

Operating voltage range: VCCopr. = 6 to 18 V, VSopr. = 0 to 18 V

No malfunction occurs even if VCCis higher than VSor Vice versa.
