TC7W08FU
数据手册.pdfIC 与门 TC7W08FU SM8 marking/标记 7W08

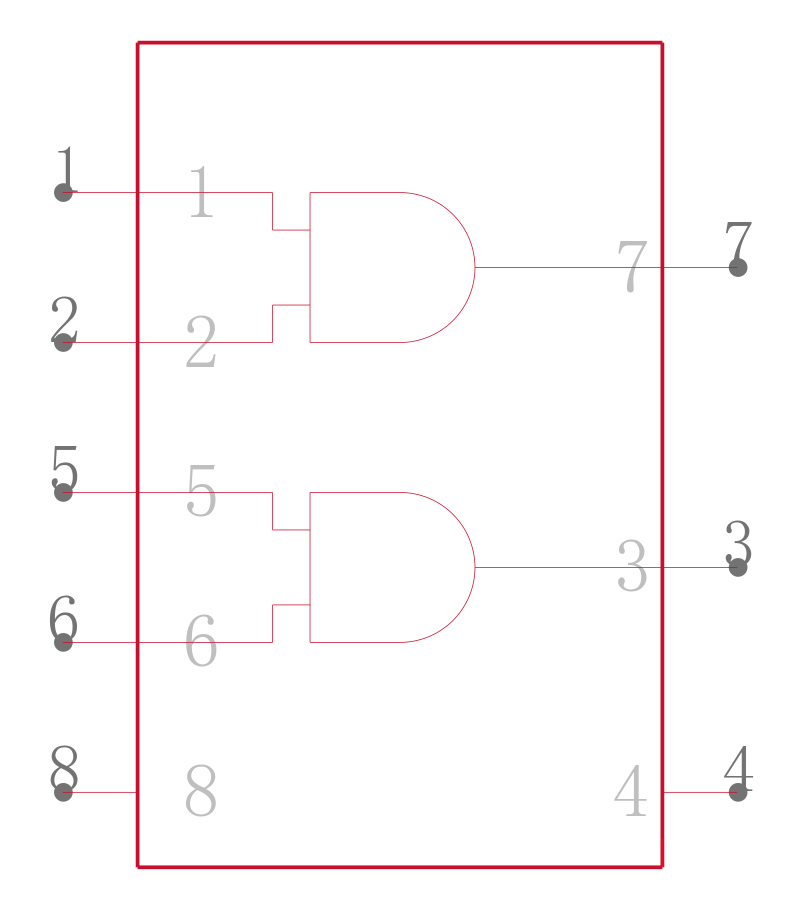

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 2 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2v~6v 静态电流IqCurrent - Quiescent Max| 1µA 输出高，低电平电流Current - Output High, Low| -5.2mA,5.2mA 低逻辑电平Logic Level - Low| 0.5V~1.8V 高逻辑电平Logic Level - High| 1.5V~4.2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 13nS @ 6V，50pF Description & Applications| DUAL 2-INPUT AND GATE ;High Speed : tpd = 6ns typ. at VCC = 5V • Low power dissipation : ICC = 1μA max at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC min • Output drive capability : 10 LSTTL Loads • Symmetrical Output Impedance : |IOH| = IOL= 4mA min • Balanced propagation delays : tpLH ≒ tpHL • Wide operating voltage range : VCC = 2 to 6V 描述与应用| 双2输入与门;高速：TPD =6ns的VCC = 5V时（典型值） •低功耗：ICC=1μA（最大值）在Ta= 25°C •高抗干扰性：VNIH= VNIL=28％VCC （分钟） •输出驱动能力：10输入通道负载 •对称的输出阻抗：| IOH|：IOL=4毫安（分钟） •平衡传输时延：TPLH≒TPHL •宽工作电压范围：VCC=2〜6V
