TC7WH14FK

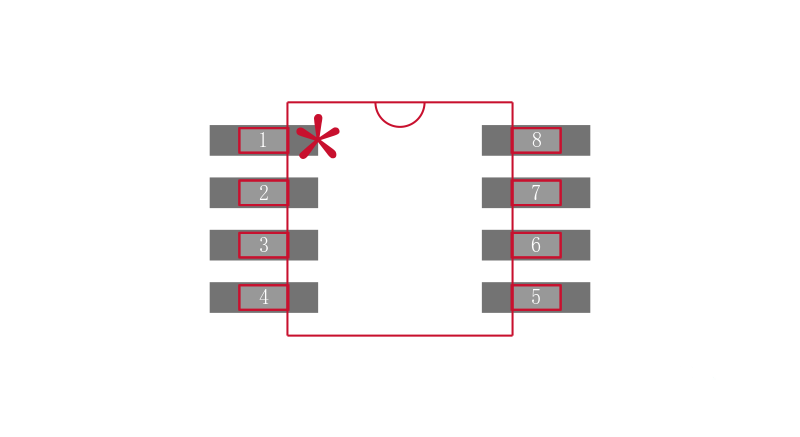

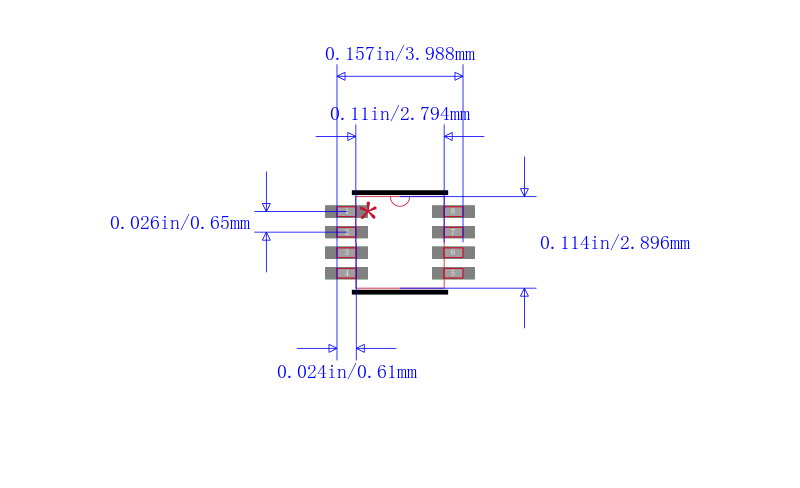

数据手册.pdfIC 反相施密特触发器 TC7WH14FK US8 marking/标记 EH14

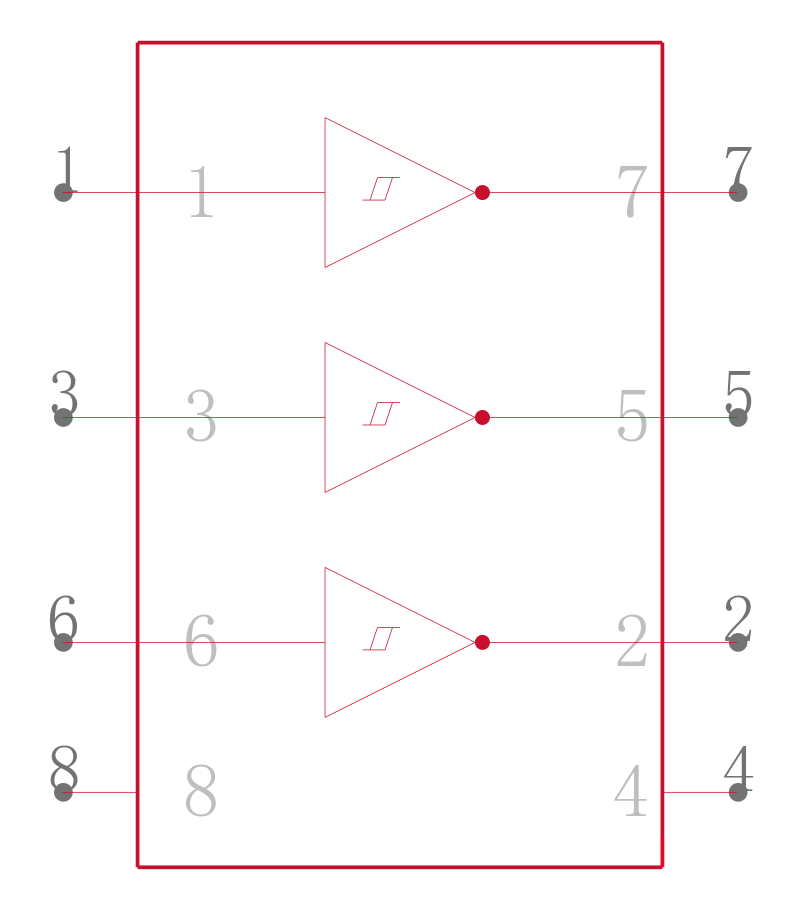

逻辑类型Logic Type| 反相施密特触发器 Inverting Schmitt trigger \---|--- 电路数Number of Circuits| 3 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 2V~5.5V 静态电流IqCurrent - Quiescent Max| 2µA 输出高，低电平电流Current - Output High, Low| -8mA,8mA 低逻辑电平Logic Level - Low| 0.9V~1.65V 高逻辑电平Logic Level - High| 2.2V~3.85V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 10.6ns @ 4.5V ~ 5.5V，50pF Description & Applications| Triple Schmitt Inverter ;High speed operation : tpd = 5.5ns typ. at VCC = 5V, CL = 15pF • Low power dissipation : ICC = 2μA max at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC min • Operating voltage range : VCC = 2 to 5.5V • Balanced propagation delays : tpLH ≒ tpHL • 5.5-V tolerant inputs • Identical pin assignment and function with TC7W14 描述与应用| 三施密特逆变器;高速运行：TPD =5.5ns（典型值） 在VCC =5V，CL=15pF的 •低功耗：ICC=2μA（最大值）在大= 25°C •高噪声，免疫力：VNIH= VNIL=28％VCC（分钟） •工作电压范围：VCC=5.5V •平衡传输时延：TPLH≒TPHL •5.5-V宽容输入 •相同的引脚分配和功能TC7W14
