TC7WZ32FK

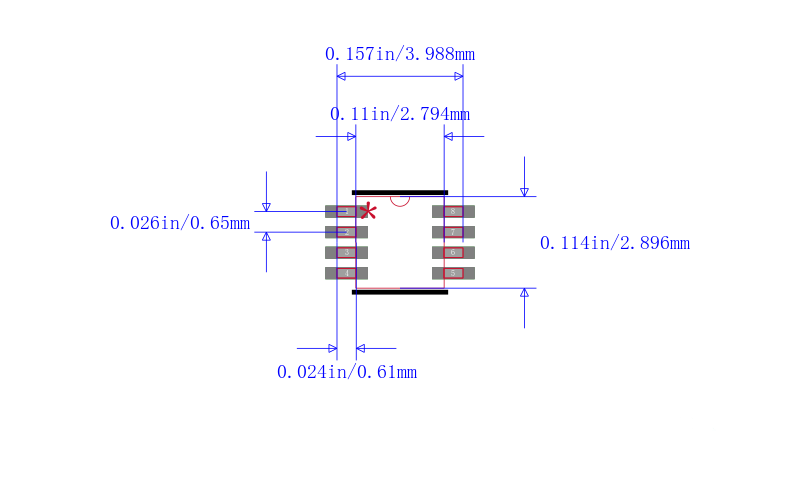

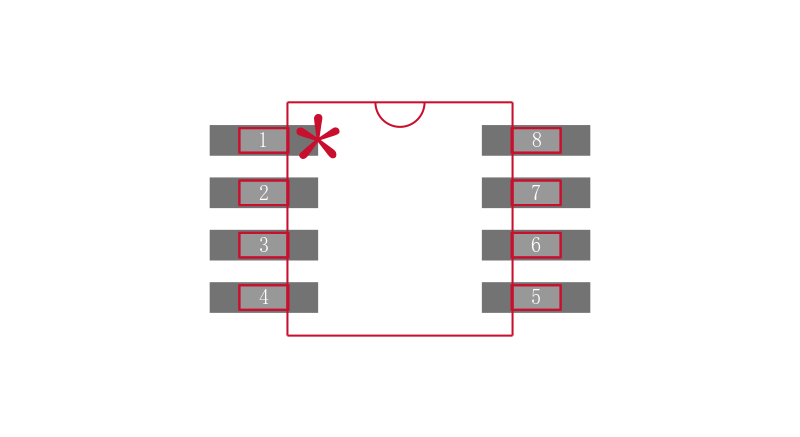

IC 或门 TC7WZ32FK US8 marking/标记 wz32

逻辑类型Logic Type| 或门 OR Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 1.65V~5.5V 静态电流IqCurrent - Quiescent Max| 1µA 输出高，低电平电流Current - Output High, Low| -24mA,24mA 低逻辑电平Logic Level - Low| 0.25v~0.3v 高逻辑电平Logic Level - High| 0.7v~0.75v 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 2.4ns @ 5V，50pF Description & Applications| 2 Input or Gate ;High output drive: ±24 mA min @VCC = 3V Super high speed operation: tpd 2.4 ns typ. @VCC = 5 V, 50 pF Operation voltage range: VCC opr = 1.65~5.5 V Latch-up performance: ±500 mA or more ESD performance: ±200 V or more JEITA ±2000 V or more MIL Power down protection is provided on all inputs and outputs. Matches the performance of TC74LCX series when operated at 3.3 V VCC 描述与应用| 2输入或门;“高输出驱动：@ VCC= 5 V，±24 mA（分钟）@ VCC= 3V超高速度运行：TPD2.4纳秒（典型值）50 PF 工作电压范围：VCC（OPR）=1.65〜5.5 V 闭锁性能：±500 mA或更大 ESD性能：±200 V或以上（JEITA）   ±2000 V以上（MIL） 掉电保护提供所有输入和输出。  操作时的性能相匹配的TC74LCX系列 在3.3 V VCC“
