TC7WHU04FK

IC 反相器 TC7WHU04FK US8 marking/标记 WHU04

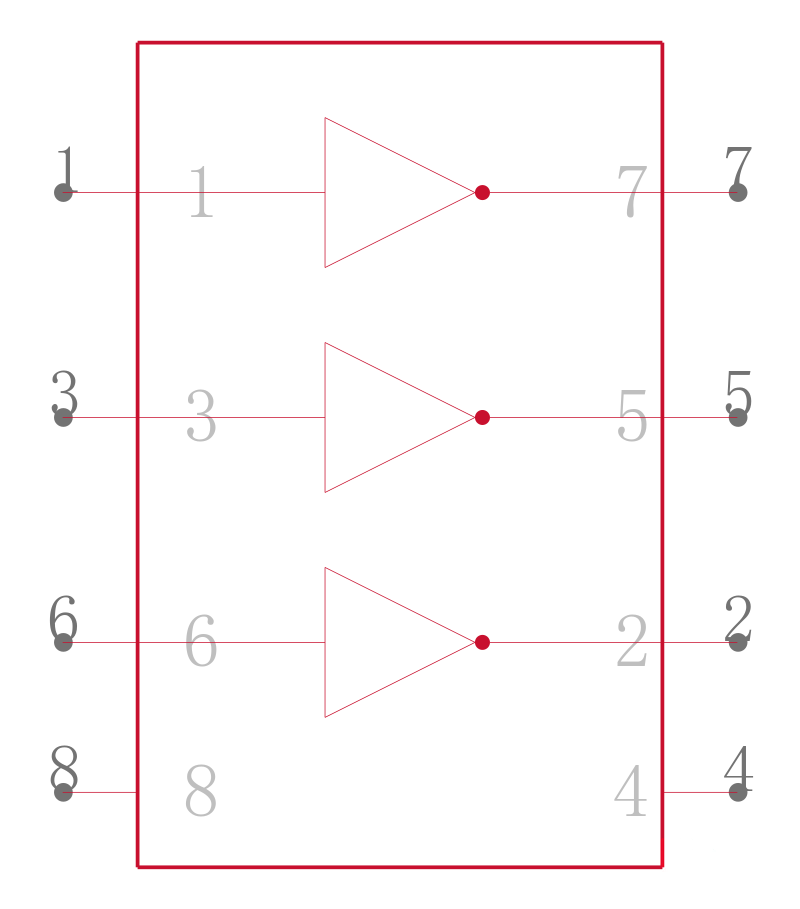

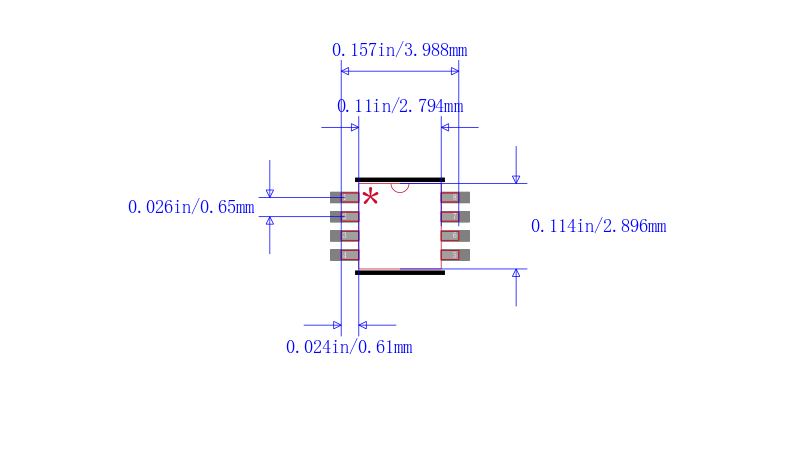

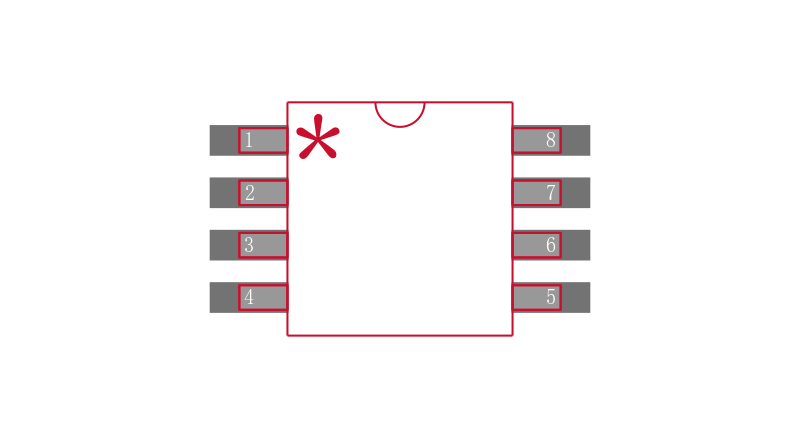

逻辑类型Logic Type| 反相器 Inverter \---|--- 电路数Number of Circuits| 3 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 2V~5.5V 静态电流IqCurrent - Quiescent Max| 2µA 输出高，低电平电流Current - Output High, Low| -8mA,8mA 低逻辑电平Logic Level - Low| 0.3V 高逻辑电平Logic Level - High| 1.7V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 7ns @ 4.5V ~ 5.5V，50pF Description & Applications| Triple InverterUn-Buffer ;High speed: tpd = 3.5 ns typ. at VCC = 5 V, CL = 15pF • Low power dissipation: ICC = 2 μA max at Ta = 25°C • High noise immunity: VNIH = VNIL = 10% VCC min • 5.5-V Tolerant inputs. • Wide operating voltage range: VCC = 2to5.5 V • Balanced propagation delays :tpLH ≈ tpHL • Identical pin assignment and function with TC7WU04 描述与应用| 三重逆变器（无缓冲）;高速：TPD =3.5纳秒（典型值）VCC= 5 V，CL=15PF •低功耗：ICC= 2μA（最大值）在大= 25°C •高噪声，免疫力：VNIH= VNIL= 10％VCC（分钟） •5.5-V宽容的投入。 •宽工作电压范围：VCC=2to5.5 V •平衡传输时延：TPLH≈TPHL •相同的引脚分配和功能TC7WU04
