TLP197GA

Relay SSR 50mA 1.3V DC-IN 0.12A 400V AC-DC-OUT 6Pin SOP

PBX

Telecommunication

Modem•FAX Cards, Modems In PC

Measurement Instrumentation

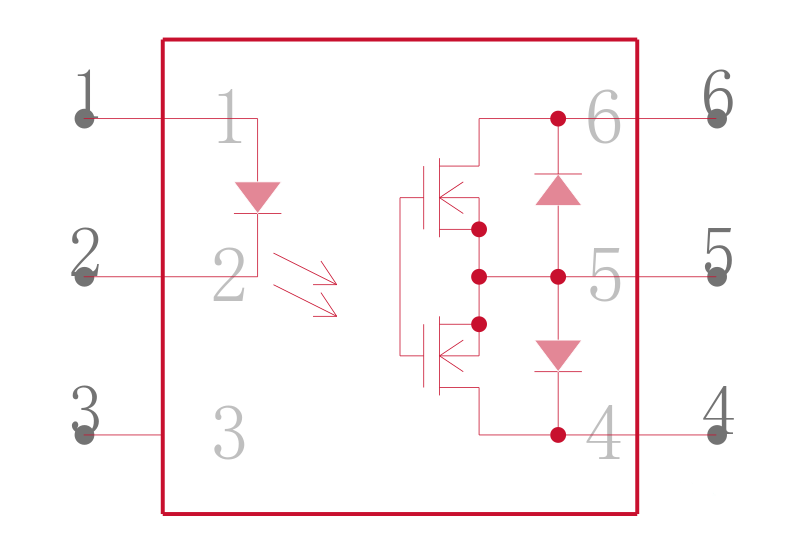

The TOSHIBA consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a SOP, which is suitable for surface mount assembly.

The TLP197GA is suitable for replacement of mechanical relays in many applications which require space savings.

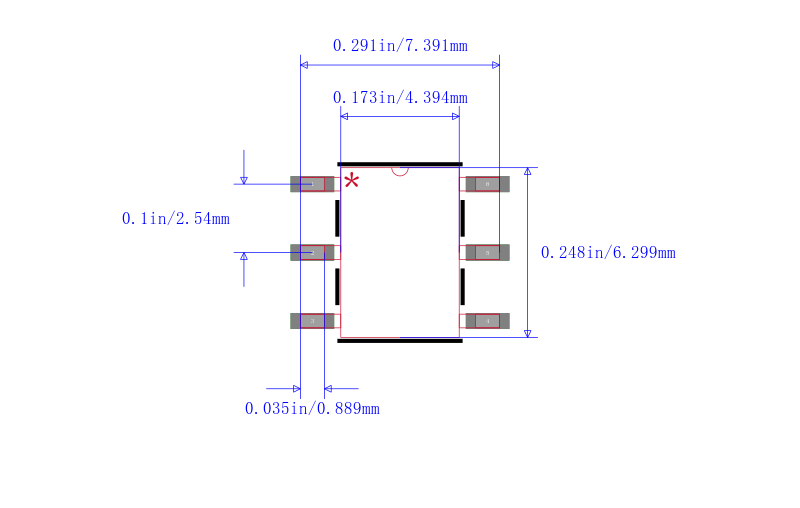

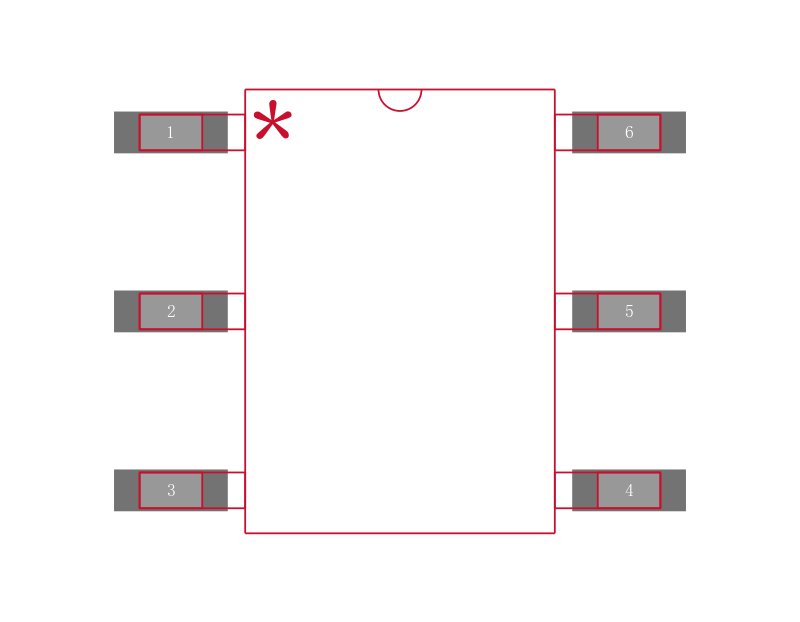

• 6 pin SOP 2.54SOP6: 2.1 mm high, 2.54 mm pitch

• 1-form-A

• Peak off-state voltage: 400 V min

• Trigger LED current: 3 mA max

• On-state current: 120 mA max

• On-state resistance: 35 Ω max

• Isolation voltage: 1500 Vrms min

• BSI approved: BS EN60065:2002, certificate no.8753

                     BS EN60950-1:2002, certificate no.8754
