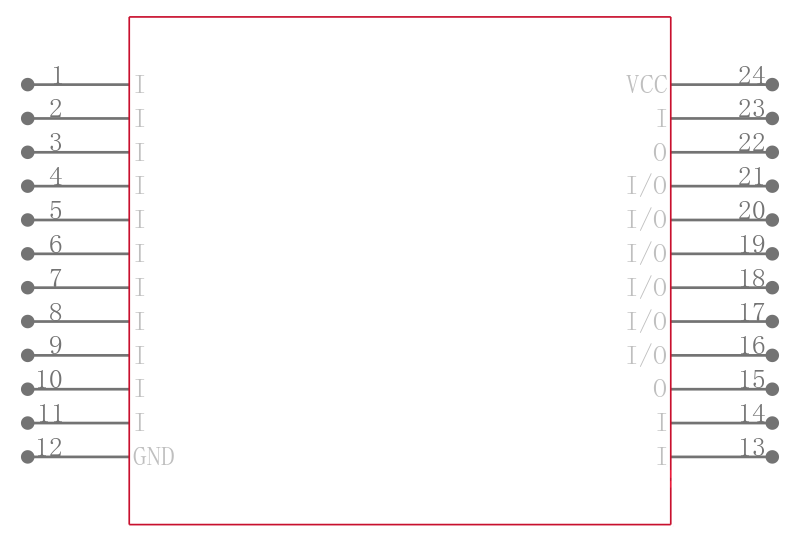

TIBPAL20L8-20MWB

SPLD - 简单可编程逻辑器件 High-Performance Impact PAL Circuits 24-CFP -55 to 125

description

These programmable array logic devices feature high speed and functional equivalency when compared with currently available devices. These IMPACT™ circuits combine the latest Advanced Low-Power Schottky technology with proven titanium-tungsten fuses to provide reliable, high-performance substitutes for conventional TTL logic. Their easy programmability allows for quick design of custom functions and typically results in a more compact circuit board. In addition, chip carriers are available for futher reduction in board space.

• High-Performance: fmax w/o feedback

   BPAL20R’ -15C Series . . . 45 MHz

   TIBPAL20R’ -20M Series . . . 41.6 MHz

• High-Performance . . . 45 MHz Min

• Reduced ICC of 180 mA Max

• Functionally Equivalent, but Faster Than PAL20L8, PAL20R4, PAL20R6, PAL20R8

• Power-Up Clear on Registered Devices All Register Outputs are Set Low, but Voltage Levels at the Output Pins Go High

• Preload Capability on Output Registers Simplifies Testing

• Package Options Include Both Plastic and Ceramic Chip Carriers in Addition to Plastic and Ceramic DIPs
