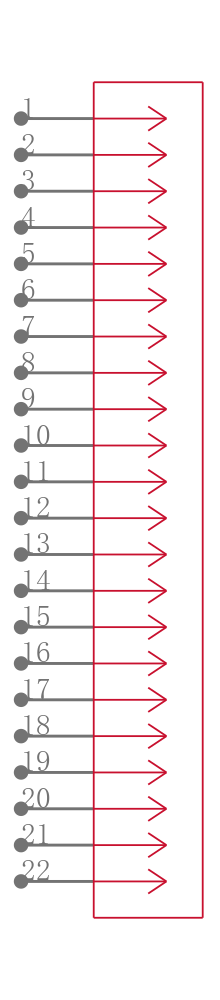

TSW-111-07-S-D

Conn Unshrouded Header HDR 22POS 2.54mm Solder ST Thru-Hole

针座 通孔 22 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 22POS 2.54MM

艾睿:

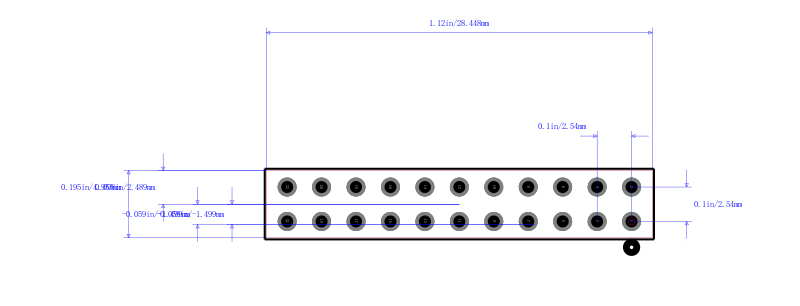

Reduce safety concerns with this unshrouded TSW-111-07-S-D header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 22 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. This product is 27.94 mm long, 8.38 mm tall and 5.08 mm deep. It uses the solder termination method. TSW-111-07-S-D is housed in black polyester.

Newark:
# SAMTEC  TSW-111-07-S-D  .025 Sq. Terminal Strips
