TSW-103-26-L-T

TSW-103-26-L-T

数据手册.pdf

2.54mm 方针

针座 通孔 9 位置 0.100"(2.54mm)


得捷:
CONN HEADER VERT 9POS 2.54MM


立创商城:
2.54mm 方针


艾睿:
Samtec brings you their unshrouded TSW-103-26-L-T header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 9 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 3-row connector. This device has a maximum current rating of 6.3 A/contact. This connector has an operating temperature of -55 to 125 °C. This product is 7.62 mm long, 8.38 mm tall and 7.62 mm deep. It uses the solder termination method. TSW-103-26-L-T is housed in black polyester.


安富利:
Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole


Newark:
# SAMTEC  TSW-103-26-L-T  Board-To-Board Connector, 2.54 mm, 9 Contacts, Header, TSW Series, Through Hole, 3 Rows


TSW-103-26-L-T中文资料参数规格
技术参数

触点数 9

极性 Male

触点电镀 Gold

排数 3

额定电流Max 6.3A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压Max 550 VAC

封装参数

安装方式 Through Hole

封装 -

引脚间距 2.54 mm

外形尺寸

高度 8.38 mm

封装 -

引脚间距 2.54 mm

物理参数

外壳颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Industrial, -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

TSW-103-26-L-T引脚图与封装图

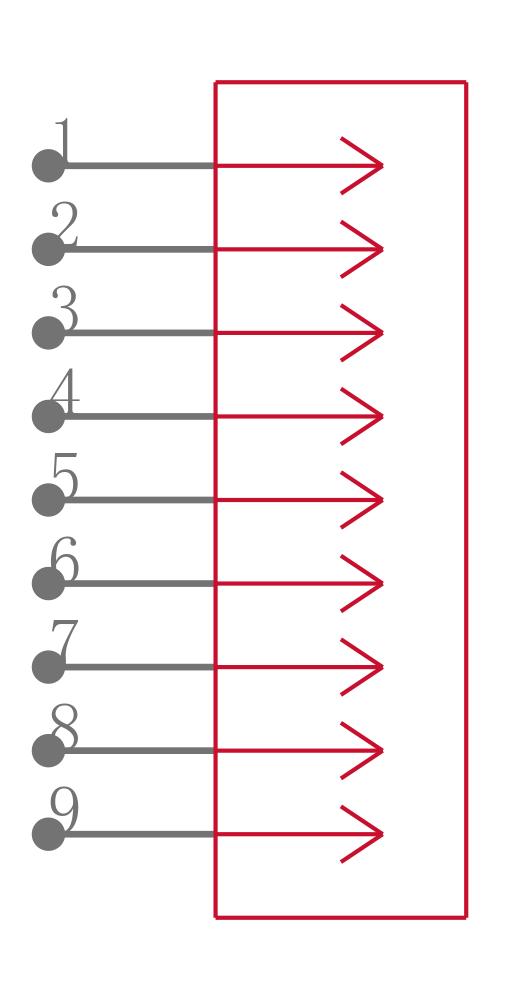

TSW-103-26-L-T引脚图

TSW-103-26-L-T引脚图

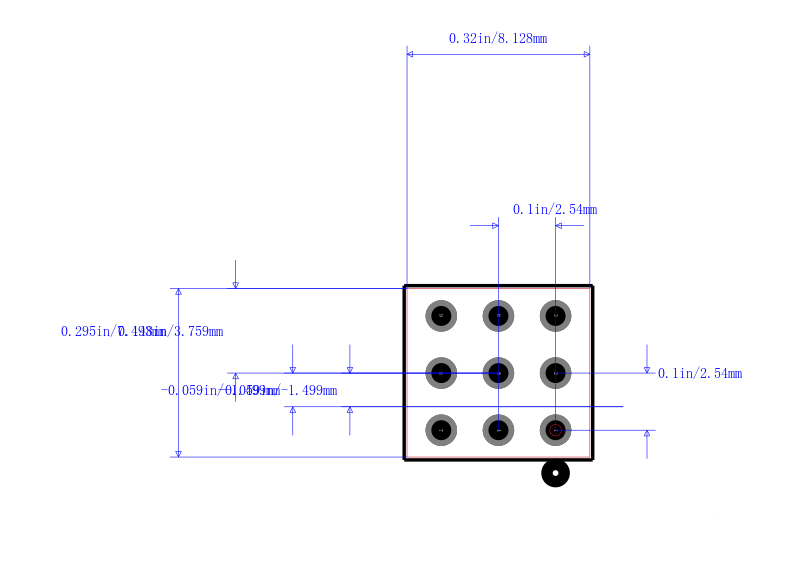

TSW-103-26-L-T封装图

TSW-103-26-L-T封装图

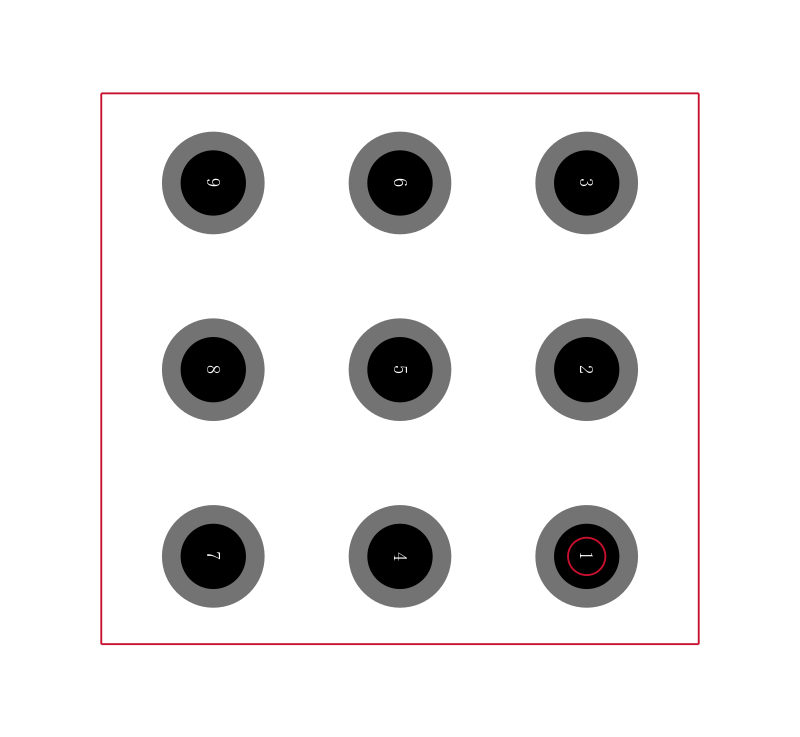

TSW-103-26-L-T封装焊盘图

TSW-103-26-L-T封装焊盘图

在线购买TSW-103-26-L-T
型号 制造商 描述 购买
TSW-103-26-L-T Samtec 申泰电子 2.54mm 方针 搜索库存
