TSW-115-07-T-S

2.54mm 方针

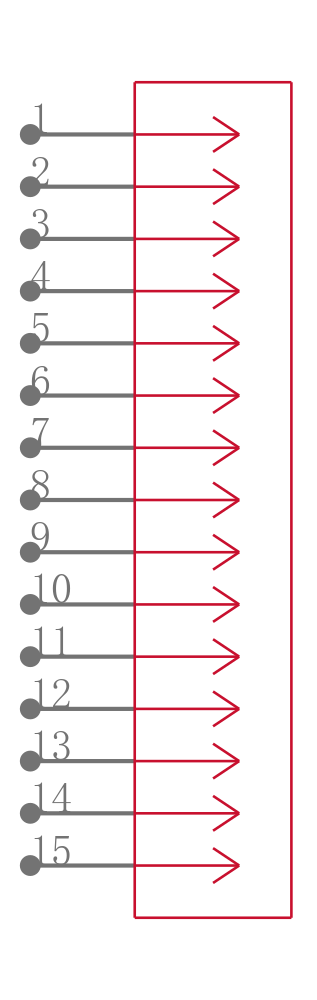

针座 通孔 15 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 15POS 2.54MM

立创商城:
2.54mm 方针

艾睿:

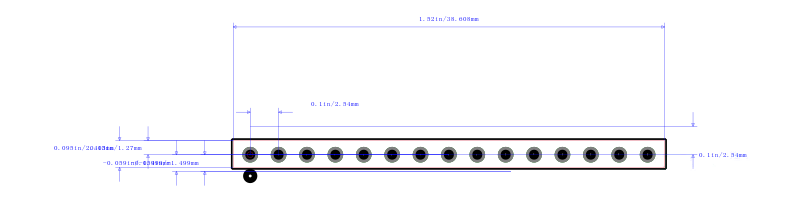

Samtec&s;s unshrouded TSW-115-07-T-S header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 15 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 105 °C. TSW-115-07-T-S is housed in black polyester. It uses the solder termination method. This product is 38.1 mm long, 8.38 mm tall and 2.54 mm deep.

安富利:
Conn Unshrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-115-07-T-S  Board-To-Board Connector, 2.54 mm, 15 Contacts, Header, TSW Series, Through Hole, 1 Rows
