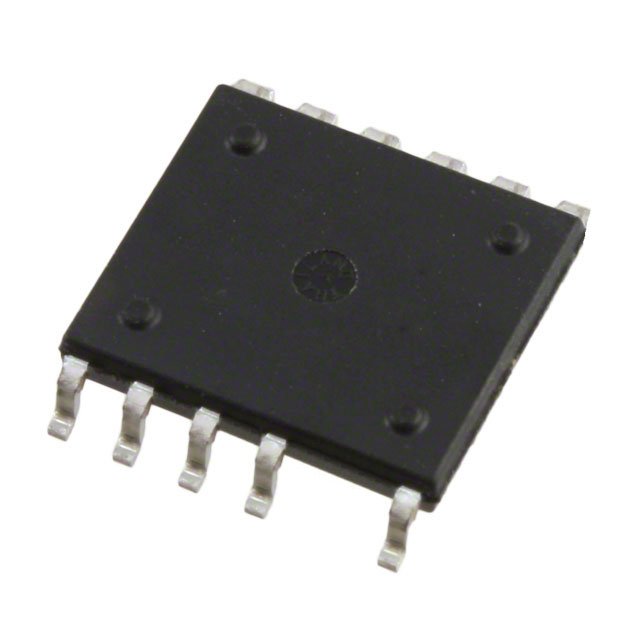

TNY288KG-TL
数据手册.pdfAC to DC Switching Converter Off-Line Switcher 124kHz to 140kHz T/R 11Pin SOP-B EP
Product Highlights
Lowest System Cost with Enhanced Flexibility
• 725 V rated MOSFET
• Increases BV de-rating margin
• Line compensated overload power – no additional components
• Dramatically reduces max overload variation over universal input voltage range
• ±5% turn on UV threshold: line voltage sense with single external resistor
• Simple ON/OFF control, no loop compensation needed
• Selectable current limit through BP/M capacitor value
• Higher current limit extends peak power or, in open frame applications, maximum continuous power
• Lower current limit improves efficiency in enclosed adapters/chargers
• Allows optimum TinySwitch-4 choice by swapping devices with no other circuit redesign
