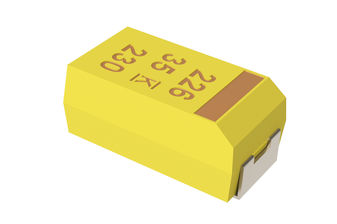

T491X336M035AT

T491X336M035AT

数据手册.pdf

33uF ±20% 35V

PRODUCT DESCRIPTION

KEMET’s family of solid tantalum chip capacitors is designed and manufactured with the demanding requirements of surface mount technology in mind.

These devices extend the advantages of solid tantalum technology to today’s surface mount circuit applications. Complementing multilayer ceramic chip convenience with capacitance ratings through 1500 µF, tantalum chip capacitors permit circuitdesigners to take full advantage of the benefits of surface mount technology.

SOLID TANTALUM CHIP CAPACITORS

T491 SERIES - Precision Molded Chip

FEATURES

• Meets or Exceeds EIA Standard 535BAAC

• Taped and Reeled per EIA 481-1

• Symmetrical, Compliant Terminations

• Optional Gold-plated Terminations

• Laser-marked Case

• 100% Surge current test on C, D, E, U, V, X sizes

• Halogen Free Epoxy

• Capacitance: 0.1 μF to 1000 μF

• Tolerance: ±10%, ±20%

• Voltage: 2.5-50 VDC

• Extended Range Values

• Low Profile Case Sizes

• RoHS Compliance & Lead Free Terminations

   See www.kemet.com for transition information

• Operating Temperature: -55˚C to +125˚C

T491X336M035AT中文资料参数规格
技术参数

额定电压DC 35.0 V

电容 33 µF

等效串联电阻ESR 600 mΩ

容差 ±20 %

产品系列 T491

纹波电流 524 mA

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压 35 V

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 7343-43

封装 7343

外形尺寸

长度 7.3 mm

宽度 4.3 mm

高度 4 mm

封装公制 7343-43

封装 7343

物理参数

介质材料 Tantalum

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 500

寿命(小时) 2000h @85℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

T491X336M035AT引脚图与封装图
T491X336M035AT引脚图

T491X336M035AT引脚图

T491X336M035AT封装图

T491X336M035AT封装图

T491X336M035AT封装焊盘图

T491X336M035AT封装焊盘图
