TSW-104-14-L-S

SAMTEC TSW-104-14-L-S Board-To-Board Connector, 2.54mm, 4Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 4 位置 0.100"（2.54mm）

欧时:
.100" Terminal Strip

得捷:
CONN HEADER VERT 4POS 2.54MM

艾睿:

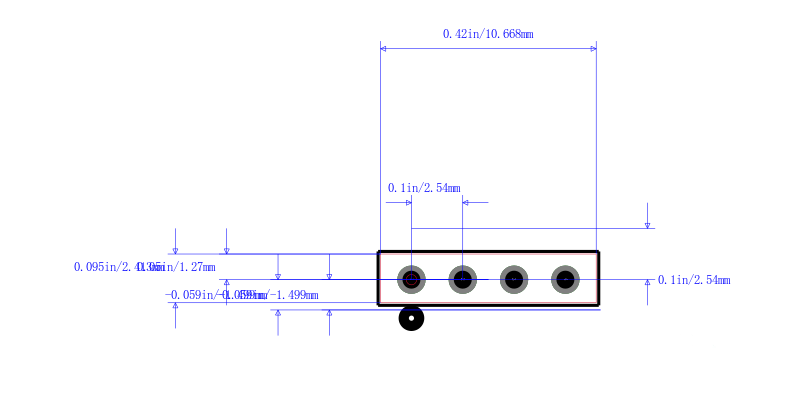

Mounting this unshrouded TSW-104-14-L-S header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 10.16 mm long, 10.67 mm tall and 2.54 mm deep. TSW-104-14-L-S is housed in black polyester.

安富利:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-104-14-L-S  Board-To-Board Connector, 2.54 mm, 4 Contacts, Header, TSW Series, Through Hole, 1 Rows
