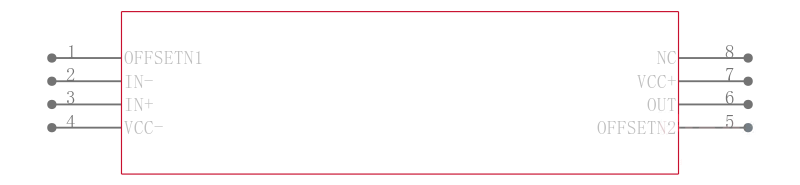

TLE2141IDRG4
EXCALIBUR低噪声高速精密运算放大器 EXCALIBUR LOW-NOISE HIGH-SPEED PRECISION OPERATIONAL AMPLIFIERS
description
The TLE214x and TLE214xA devices are high-performance, internally compensated operational amplifiers
built using Texas Instruments complementary bipolar Excalibur process. The TLE214xA is a tighter offset
voltage grade of the TLE214x. Both are pin-compatible upgrades to standard industry products.
Low Noise
10 Hz . . . 15 nV/√Hz
1 kHz . . . 10.5 nV/√Hz
10000-pF Load Capability
20-mA Min Short-Circuit Output Current
27-V/µs Min Slew Rate
High Gain-Bandwidth Product. . . 5.9 MHz
Low VIO . . . 500 µV Max at 25°C
Single or Split Supply...4 V to 44 V
Fast Settling Time
340 ns to 0.1%
400 ns to 0.01%
Saturation Recovery. . . 150 ns
Large Output Swing
VCC−+0.1 V to VCC+− 1 V
