TLC27L4CPWG4

精密放大器 Quad Precision Single Supply uPower

description

The TLC27L4 and TLC27L9 quad operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, extremely low power, and high gain.

Trimmed Offset Voltage:

  TLC27L9. . . 900 µV Max at 25°C, VDD= 5 V

Input Offset Voltage Drift...Typically

  0.1 µV/Month, Including the First 30 Days

Wide Range of Supply Voltages Over Specified Temperature Range:

  0°C to 70°C...3 V to 16 V

  –40°C to 85°C...4 V to 16 V

  –55°C to 125°C...4 V to 16 V

Single-Supply Operation

Common-Mode Input Voltage Range Extends Below the Negative Rail C-Suffix, I-Suffix Types

Ultra-Low Power...Typically 195 µW at 25°C, VDD= 5 V

Output Voltage Range includes Negative Rail

High Input Impedance...1012 Ω Typ

ESD-Protection Circuitry

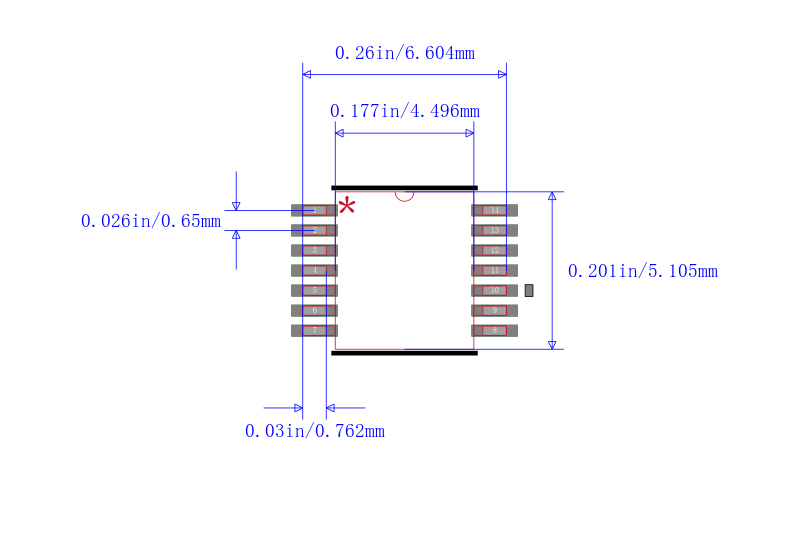

Small-Outline Package Option Also Available in Tape and Reel

Designed-In Latch-Up Immunity
