TLV990-13PFBG4

AFE Video 1ADC 10Bit 2.5V/3V/3.3V 48Pin TQFP

description

The TLV990-13 is a complete CCD signal processor/digitizer designed for digital still camera and PC camera applications. The TLV990-13 performs all the analog-processing functions necessary to maximize the dynamic range, corrects various errors associated with the CCD sensor, and then digitizes the results with an on-chip high-speed analog-to-digital converter ADC.

The key components of the TLV990-13 include: an input clamp circuit for CCD signal, a correlated double sampler CDS, a programmable-gain amplifier PGA with 0 to 36-dB gain range, two internal digital-to-analog converters DAC for automatic or programmable optical black level and offset calibration, a 10-bit, 13-MSPS pipeline ADC, a parallel data port for easy microprocessor interface, a serial port for configuring internal control registers, two additional DACs for external system control, and internal reference voltages.

features

• Single-Chip CCD Analog Front-End

• 10-Bit, 13-MSPS, Single 3-V Supply Operation A/D Converter

• Very Low Power: 150-mW Typical, 2-mW Power-Down Mode

• Differential Nonlinearity Error:

  < ±0.5 LSB Typical

• Integral Nonlinearity Error:

  < ±0.9 LSB Typical

• Programmable Gain Amplifier PGA With 0-dB to 36-dB Gain Range 0.045 dB/Step

• Automatic or Programmable Optical Black Level and Offset Calibration With Digital Filter and Bad Pixel Limits

• Additional DACs for External Analog Setting

• Serial Interface for Register Configuration

• Internal-Reference Voltages

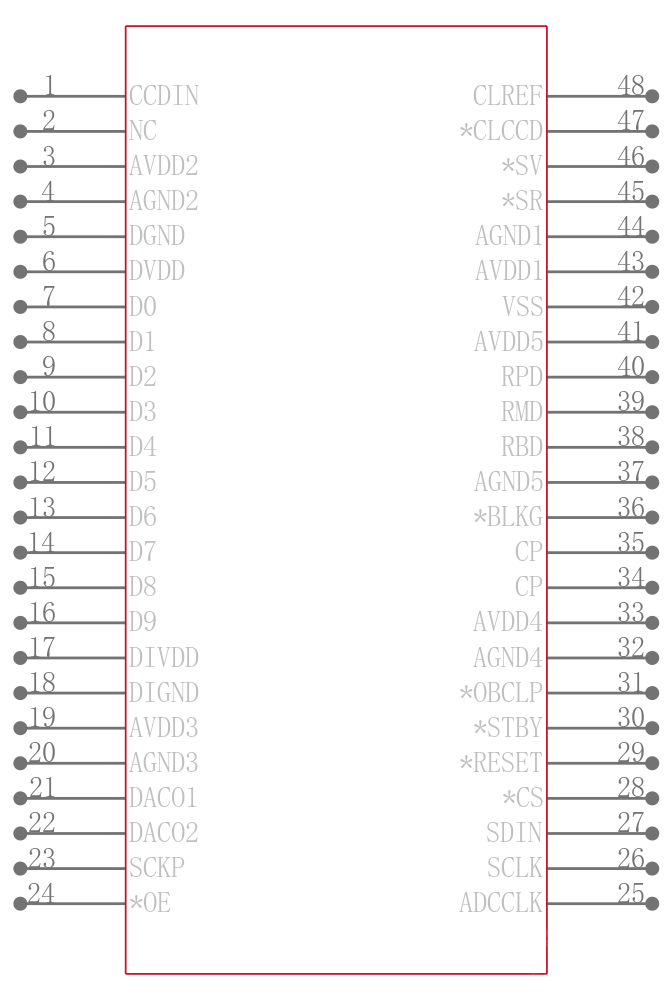

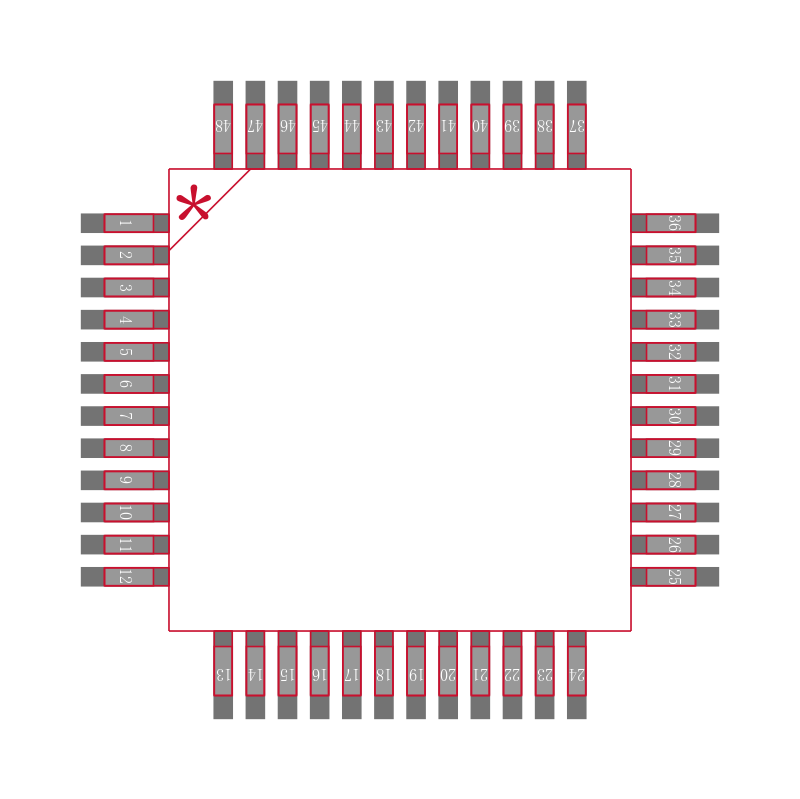

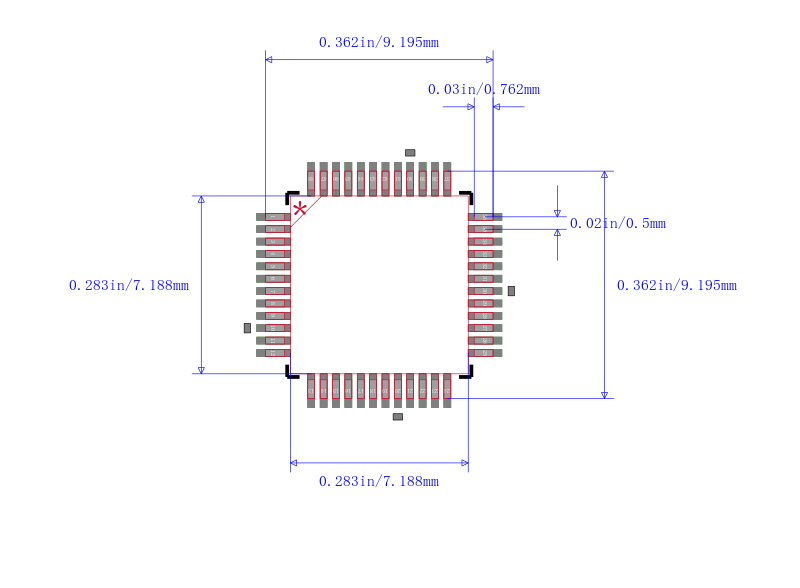

• 48-Pin TQFP Package



application

• Digital Still Camera

• PC Camera
