TP32W008000

TP32W008000

数据手册.pdf
Apem Components 工业控制

Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole

按钮 SPDT 标准 通孔,直角


得捷:
SWITCH PUSH SPDT 0.4VA 20V


立创商城:
TP32W008000


艾睿:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


Chip1Stop:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


Verical:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


MASTER:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


Powell:
Sealed Sub-Miniature Pushbutton


Electro Sonic:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


TP32W008000中文资料参数规格
技术参数

额定电压DC 20 V

额定电压AC 20 V

排数 1

工作温度Max 85 ℃

工作温度Min -30 ℃

接触电阻Max 50 mΩ

封装参数

安装方式 Through Hole

封装 -

外形尺寸

长度 8.1 mm

宽度 18.18 mm

高度 5.55 mm

封装 -

物理参数

触点材质 Brass

工作温度 -30℃ ~ 85℃

其他

产品生命周期 60000 Cycles

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

TP32W008000引脚图与封装图

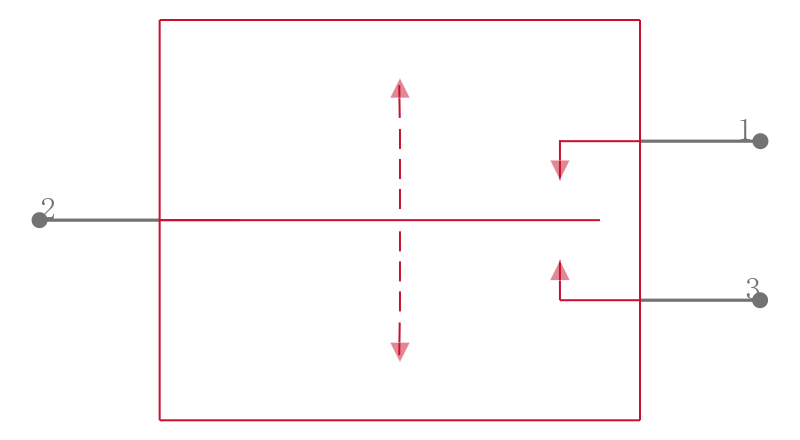

TP32W008000引脚图

TP32W008000引脚图

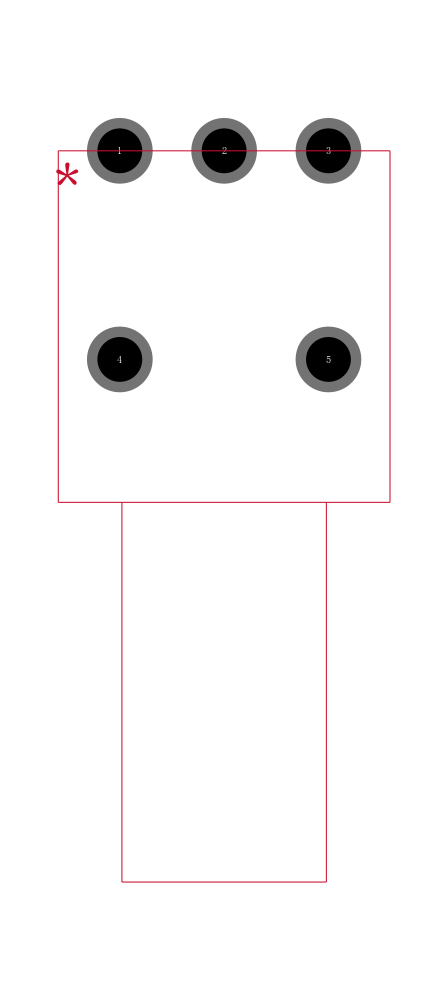

TP32W008000封装图

TP32W008000封装图

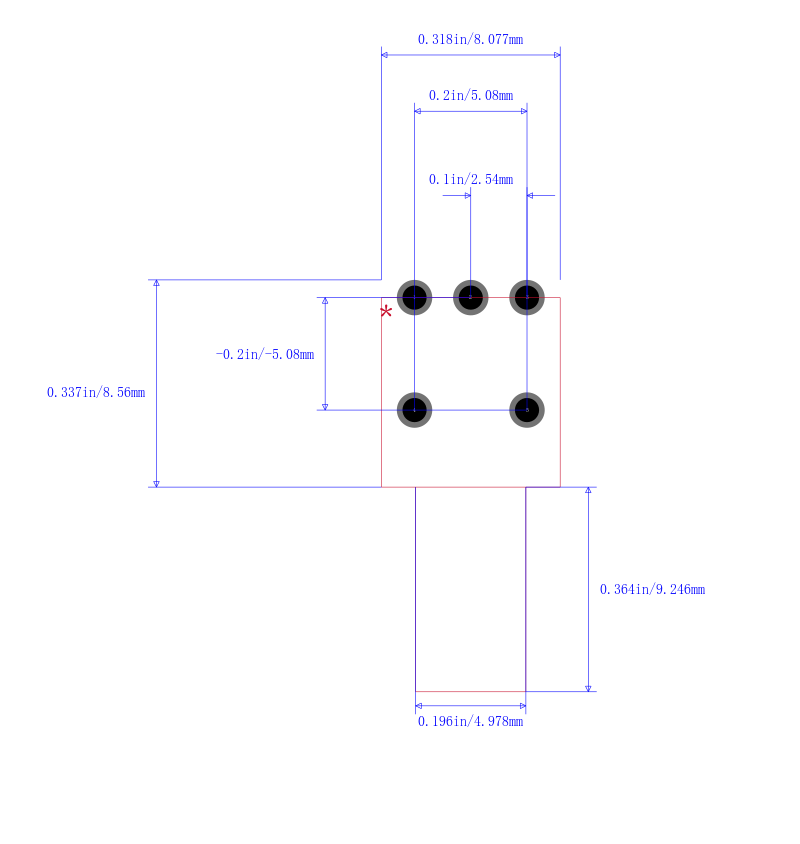

TP32W008000封装焊盘图

TP32W008000封装焊盘图

在线购买TP32W008000
型号 制造商 描述 购买
TP32W008000 Apem Components Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole 搜索库存
替代型号TP32W008000
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: TP32W008000

品牌: Apem Components

封装:

当前型号

Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole

当前型号

型号: TP32WW08000

品牌: Apem Components

封装:

完全替代

按钮开关, SPDT, 0.4VA, 20V, 通孔安装

TP32W008000和TP32WW08000的区别

型号: EP12SD1APE

品牌: C&K Components

封装:

类似代替

Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole

TP32W008000和EP12SD1APE的区别

型号: EP12SD1AVGE

品牌: C&K Components

封装:

类似代替

Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

TP32W008000和EP12SD1AVGE的区别
