S8-0504VU
数据手册.pdf
Cynergy3 Components
继电器、I/O模块
干簧继电器, 小型, SPST-常开, 5 VDC, S8 Series, 通孔安装, 120 ohm, 1 A

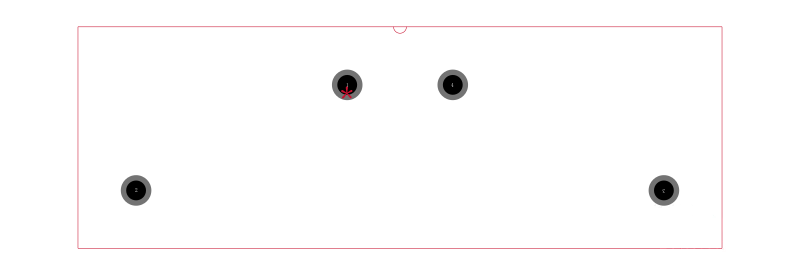

The from Cynergy3 is an UL approved miniature high voltage reed relay. The S8 UL series is a miniature high voltage reed relay for applications where space saving is a prime consideration. The coil pins are positioned near the centre of the relay while the contact pins are near the ends to give improved isolation between the high voltage contacts and the low voltage coil.
- .
- SPST form A contact configuration, coil voltage is 5VDC
- .
- Switching power is 100VA, switching voltage is 1000VDC/1000VAC, switching current is 1A
- .
- Isolation voltage across contacts is 4KV
- .
- Rhodium material
- .
- Carry current is 2.5A
- .
- Isolation between contact /coil is 7KV
- .
- Operating temperature range from -40°C to +85°C
- .
- Coil resistance is 120 ohm
- .
- Contact resistance is 150mohm
