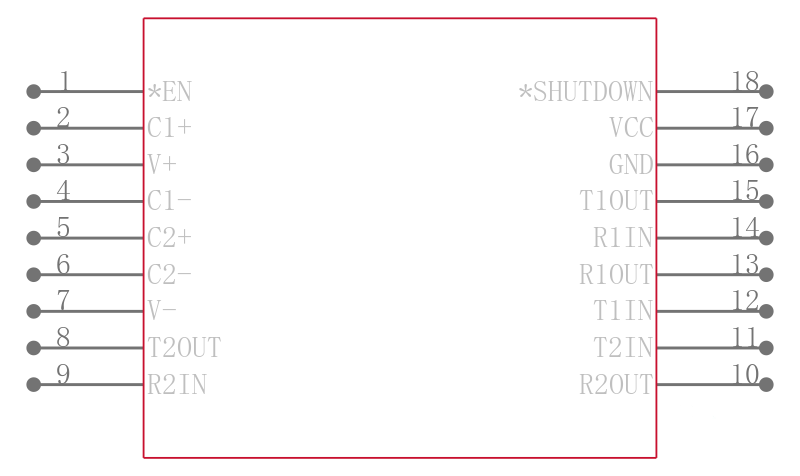

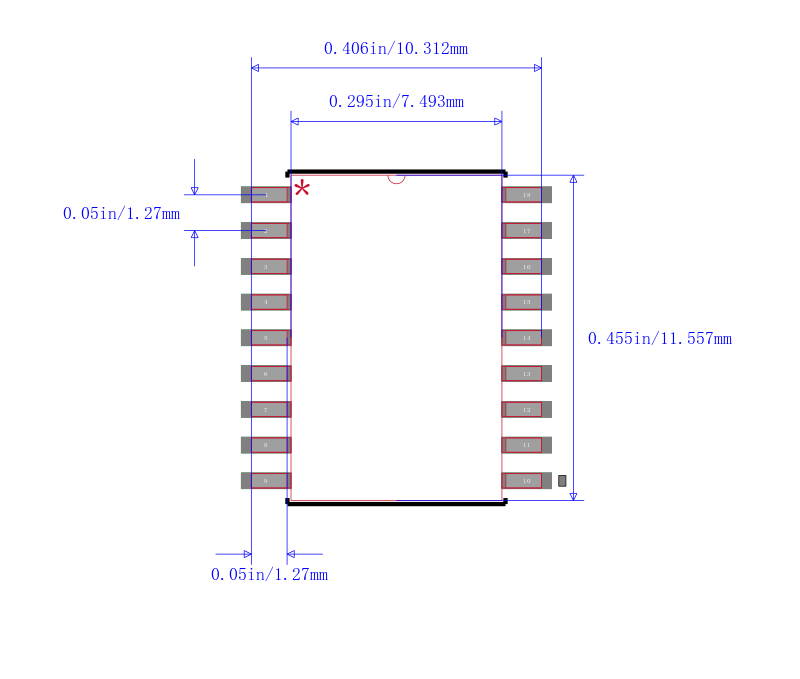

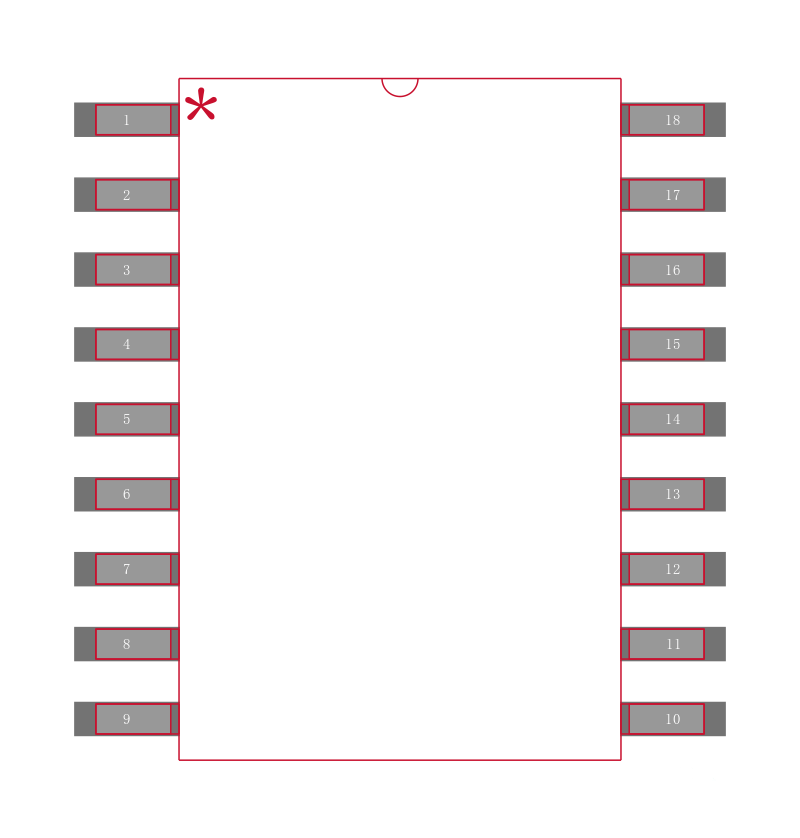

EXAR SP312EET-L 收发器, RS232, 2驱动器, 4.5V-5.5电源, WSOIC-18
The is a high performance RS-232 Line Driver/Receiver meets the specifications of RS-232 and V.28 serial protocols. The device is pin-to-pin compatible with Exar"s SP232A, SP233A, SP310A and SP312A devices as well as popular industry standard pin-outs. The ESD tolerance has been improved on these devices to over ±15kV for human body model. It offers a 120kbps data rate under load, small ceramic type 0.1µF charge pump capacitors and overall ruggedness for commercial applications. Features include Exar"s BiCMOS design which allowing low power operation without sacrificing performance.
- .
- Low power shutdown
- .
- Low power CMOS operation
- .
- Operates with 0.1 to 10µF ceramic capacitors
- .
- 120kbps Under load high data rate
