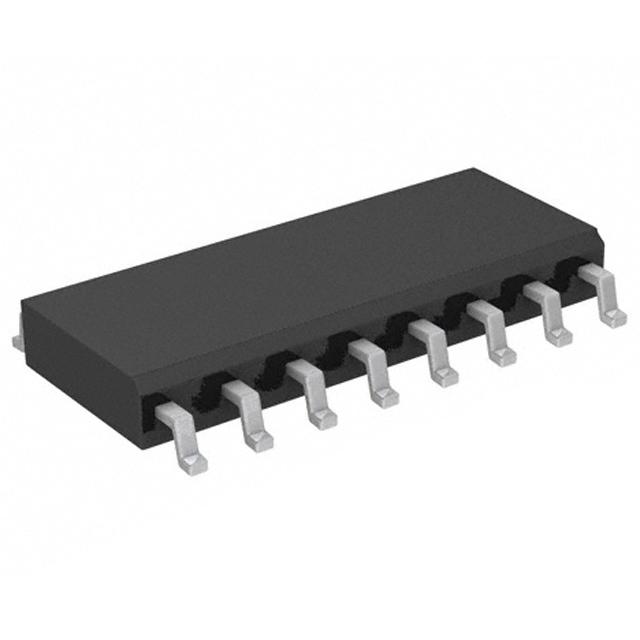

STP08C596M

8位恒流LED驱动器 8-BIT CONSTANT CURRENT LED SINK DRIVER

DESCRIPTION

The STP08C596 is a monolithic, medium-voltage, low current power 8-bit shift register designed for LED panel display. The STP08C596 contains a 8-bit serial-in, parallel-out shift register that feeds

a 8-bitD-type storage register. In the output stage, eight regulated current sources were designed to provide 15-120mA constant current to drive the LEDs.

Compared with the STPIC6C595, the device provides great flexibility and improved performance in LED panel system design.

■ 8 CONSTANT CURRENT OUTPUT CHANNELS

■ ADJUSTABLE OUTPUT CURRENT THROUGH EXTERNAL RESISTOR

■ SERIAL DATA IN/PARALLEL DATA OUT

■ SERIAL OUT CHANGE STATE ON THE FALLING EDGES OF CLOCK

■ OUTPUT CURRENT: 15-120 mA

■ 25 MHz CLOCK FREQ.

■ EFFICIENCY PACKAGE
