NXP  SA602AD/01  芯片, 混频器/振荡器, 双平衡, 8SOIC

The is a double-balanced Mixer and Oscillator with low-power VHF monolithic and input amplifier, on-board oscillator and voltage regulator. It is intended for high-performance, low-power communication systems. The guaranteed parameters make this device well-suited for cellular radio applications. The mixer is a "Gilbert cell multiplier configuration which typically provides 18dB of gain at 45MHz. The oscillator operates to 200MHz. It can be configured as a crystal oscillator, a tuned tank oscillator or a buffer for an external LO. For higher frequencies, the LO input may be externally driven. The noise figure at 45MHz is typically less than 5dB. The gain, intercept performance, low-power and noise characteristics make the device a superior choice for high-performance battery operated equipment.

.
low current consumption
.
Excellent noise figure
.
High operating frequency
.
Excellent gain, intercept and sensitivity
.
low external parts count, suitable for crystal/ceramic filters
SA602AD/01中文资料参数规格
技术参数

频率 500 MHz

电源电压DC 4.50V min

供电电流 2.40 mA

针脚数 8

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压Max 8 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC

外形尺寸

封装 SOIC

其他

产品生命周期 Unknown

包装方式 Each

制造应用 射频通信, Signal Processing, 便携式器材, 信号处理, Portable Devices, 通信与网络, 传感与仪器, Sensing & Instrumentation, Communications & Networking, RF Communications

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

SA602AD/01引脚图与封装图

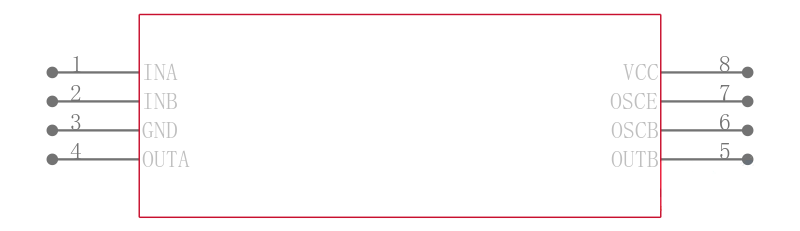

SA602AD/01引脚图

SA602AD/01引脚图

SA602AD/01封装图

SA602AD/01封装图

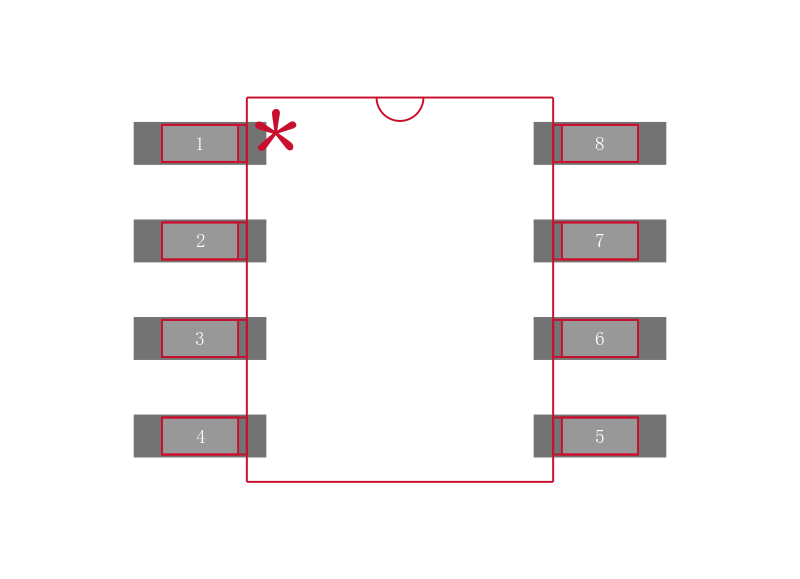

SA602AD/01封装焊盘图

SA602AD/01封装焊盘图
