SMW31R0JT

3W薄型线绕设计 超宽值范围 特别适用于电源电路 提供 1、2 或 3W 70°C 时功率 | 3W ---|--- 电阻容差 | ±5% 温度系数 | ±200ppm/°C 工作温度 | -55°C 至 +200°C 工作电压 | 500V（最大值） 尺寸（长x宽x厚） | 12 x 5.5 x 5.0 mm ### 表面安装 - 模制功率

表面安装线绕 3W

薄型线绕设计

超宽值范围

特别适用于电源电路

提供 1、2 或 3W

70°C 时功率 | 3W

---|---

容差 | ±5%

温度系数 | ±200ppm/°C

工作温度 | -55°C 至 +200°C

工作电压 | 500V（最大值）

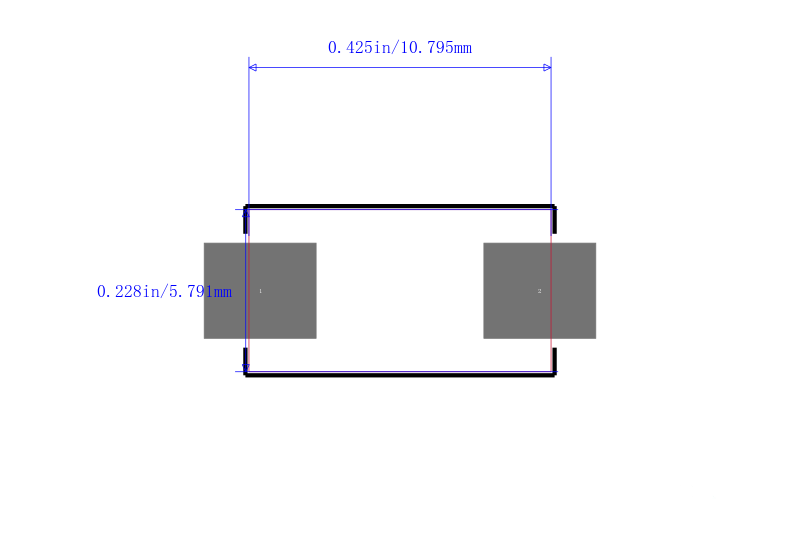

尺寸（长x宽x厚） | 12 x 5.5 x 5.0 mm

欧时:
### 表面安装线绕 3W薄型线绕设计 超宽值范围 特别适用于电源电路 提供 1、2 或 3W 70°C 时功率 | 3W ---|--- 电阻容差 | ±5% 温度系数 | ±200ppm/°C 工作温度 | -55°C 至 +200°C 工作电压 | 500V（最大值） 尺寸（长x宽x厚） | 12 x 5.5 x 5.0 mm ### 表面安装 - 模制功率

得捷:
RES SMD 1 OHM 5% 3W 4122

立创商城:
1Ω ±5% 3W

艾睿:
This is a SMW31R0JT fixed single surface-mount resistor from TE Connectivity. This dependable part has a power rating of 3 W. This product has a resistance value of 1 Ohm. Its temperature coefficient is ±200 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes wirewound technology. This product is 12 mm long, 5 mm tall and 5.5 mm deep. It has a tolerance of 5%. The SMW31R0JT part has a j-lead termination style.

Allied Electronics:
Resistor; Wirewound; Res 1 Ohms; Pwr-Rtg 3W; Tol 5%; SMT

Chip1Stop:
Res Wirewound 1 Ohm 5% 3W ±200ppm/℃ Molded J-Lead SMD T/R

Verical:
Res Wirewound 1 Ohm 5% 3W ±200ppm/C J-Lead SMD T/R

Newark:
# CGS - TE CONNECTIVITY  SMW31R0JT  Surface Mount Metal Film Resistor, SMW Series, 1 ohm, 3 W, - 5%, 500 V, SMD

MASTER:
Res Wirewound 1 Ohm 5% 3W ±200ppm/°C Molded J-Lead SMD T/R

Electro Sonic:
Res Wirewound 1 Ohm 5% 3W ±200ppm/°C Molded J-Lead SMD T/R
