S3-24V
数据手册.pdf
Panasonic
松下
继电器、I/O模块
PANASONIC ELECTRIC WORKS S3-24V 通用继电器, S系列, 功率, 无锁定, SPST常开, 24 VDC, 4 A

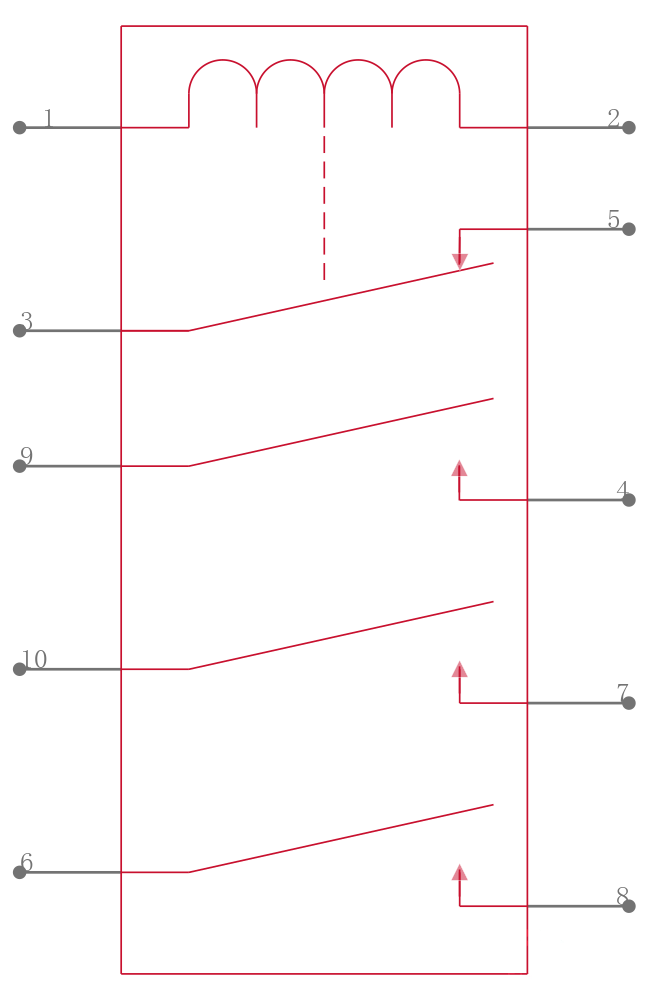

The is a general-purpose Power Relay with 3-form-A and 1-form-B gold clad silver alloy contact. This S-series power relay features single side stable operating function, through hole mounting and solder relay terminal with non-latching coil.
- .
- High sensitivity in small size
- .
- High shock and vibration resistance
- .
- Wide switching range
- .
- Low thermal electromotive force
- .
- Dual-in-line packaging arrangement
- .
- Maximum operating speed 20cpm for maximum load
- .
- 10000MR at 500VDC Initial insulation resistance
- .
- 750Vrms Initial breakdown voltage between open contacts
- .
- -40 to 65°C Ambient temperature range
- .
- 5 to 85% RH Humidity
