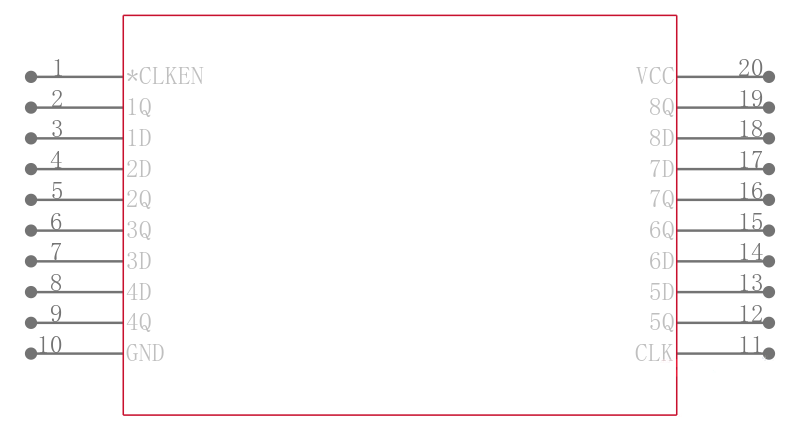

SN74HC377DWRE4

八路D型触发器与时钟使能 OCTAL D-TYPE FLIP-FLOPS WITH CLOCK ENABLE

These circuits are positive-edge triggered D-type flip-flops with an enable input. The "HC377, "HC378, and "HC379 devices are similar to "HC273, "HC174, and "HC175 respectively, but feature a latched clock enable G instead of a common clear.

Information at the D inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse if G is low. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock

Features

"HC377 and "HC378 Contain Eight and Six Flip-Flops, Respectively, with Single-Rail Outputs

"HC379 Contains Four Flip-Flops with Double-Rail Outputs

Clock Enable Latched to Avoid False Clocking

Applications Include:

Buffer/Storage Registers
