SDR0703-2R2ML

SMD功率电感 SMD Power Inductors

**Features:

**

* Low Height of Only 2.7 mm

* High ISAT of 3.2 Amps**

Applications:

**

* Input/Output of DC/DC Converters

* Power Supplies for: Portable Communication Equipment, Camcorders, LCD TVs and Car Radios

得捷:
FIXED IND 2.2UH 1.8A 60 MOHM SMD

立创商城:
2.2uH ±20% 1.8A 60mΩ

艾睿:

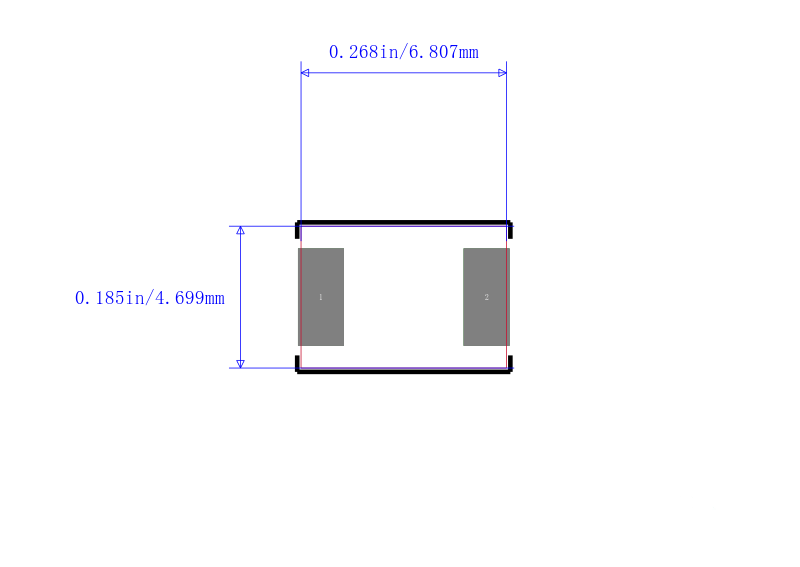

This power SDR0703-2R2ML surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 2.2u H. This product is 6.8 mm long, 2.9 mm tall and 4.7 mm deep. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 95M Hz. This SMD inductor has a maximum DC current of 1.8 A with a maximum resistance of 60m Ohm. It has a tolerance of 20%.

Allied Electronics:
Inductor; Power Wirewound; 2.2uH; 1.8A; 20%; SMD

安富利:
Ind Power Wirewound 2.2uH 20% 100KHz 24Q-Factor Ferrite 1.8A T/R

Chip1Stop:
Ind Power Wirewound 2.2uH 20% 100KHz 24Q-Factor Ferrite 1.8A T/R

Verical:
Inductor Power Unshielded Wirewound 2.2uH 20% 100KHz 24Q-Factor Ferrite 1.8A 0.06Ohm DCR T/R

MASTER:
Inductor Power Wirewound 2.2uH 20% 100KHz 24Q-Factor Ferrite 1.8A 60mOhm DCR T/R

Online Components:
Inductor Power Wirewound 2.2uH 20% 100KHz 24Q-Factor Ferrite 1.8A 60mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 2.2uH 20% 100KHz 24Q-Factor Ferrite 1.8A 60mOhm DCR T/R
