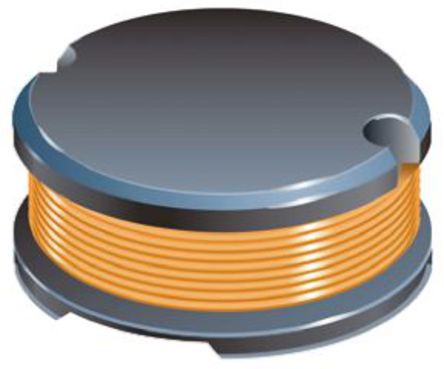

SDR0805-561KL

BOURNS  SDR0805-561KL  表面贴装功率电感器, SDR0805系列, 560 µH, ± 10%, 非屏蔽, 2.5 ohm, 300 mA

SDR0805 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 7.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 560UH 300MA 2.5OHM SMD

立创商城:
560uH ±10% 300mA 2.5Ω

欧时:
### SDR0805 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 7.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 560 µH, 300 mA, 非屏蔽, 460 mA, SDR0805系列, 7.8mm x 7.8mm x 5.3mm

艾睿:
Make any circuit look clean and compact using this power SDR0805-561KL surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 10%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 4M Hz. It has an inductance of 560u H. This product is 5.3 mm tall with a diameter of 7.8 mm. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 2.5 Ohm.

Allied Electronics:
SDR0805 WireWound SMDinductor w/ FerriteCore; 560 uH +/-10%WireWound 300mA Idc

安富利:
Ind Power Wirewound 560uH 10% 1KHz 30Q-Factor Ferrite 300mA T/R

Chip1Stop:
Ind Power Wirewound 560uH 10% 1KHz 30Q-Factor Ferrite 300mA T/R

Verical:
Inductor Power Unshielded Wirewound 560uH 10% 1KHz 30Q-Factor Ferrite 0.3A 2.5Ohm DCR T/R

Newark:
# BOURNS  SDR0805-561KL  Surface Mount Power Inductor, SDR0805 Series, 560 H, 10%, Unshielded, 2.5 ohm, 300 mA

Online Components:
Inductor Power Wirewound 560uH 10% 1KHz 30Q-Factor Ferrite 300mA 2.5Ohm DCR T/R

Electro Sonic:
Inductor Power Wirewound 560uH 10% 1KHz 30Q-Factor Ferrite 300mA 2.5Ohm DCR T/R
